01 - Cover Sheet


02 - Oven, Cabinet

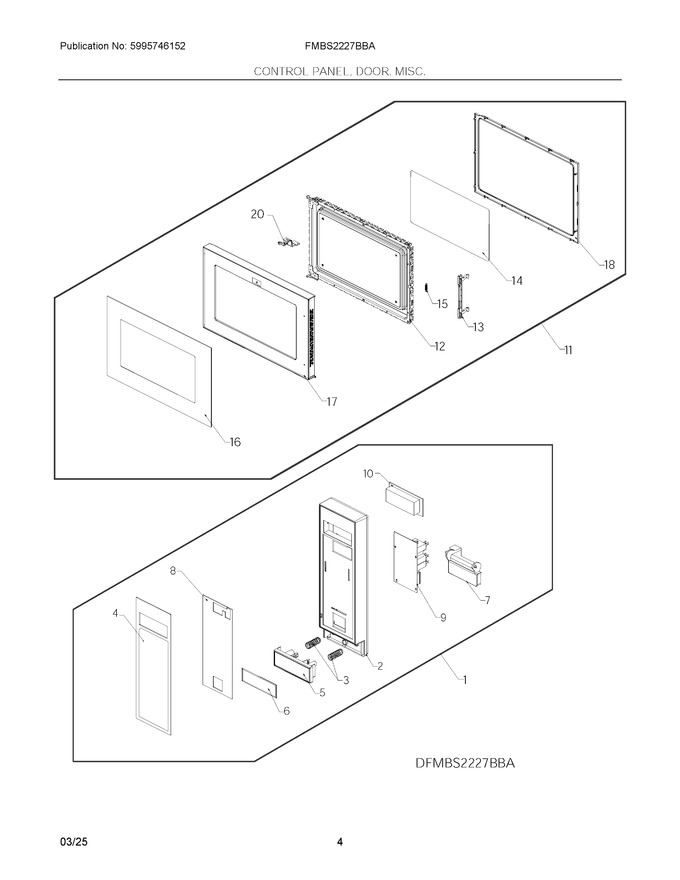

03 - Control Panel, Door, Misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056021100		Control Panel, Assembly, Complete		Appelez-nous	-
2	5304520027		Control Panel, Microwave, Black				$ 87.16
3	5304519324		Spring, Door Button				$ 5.07
4	4056018056		Touch Pad, Overlay		Appelez-nous	-
5	5304520028		Button, Door Opening, Black		Appelez-nous	-
6	5304520025		Trim, Button, Cover, Decorative		Appelez-nous	-
7	5304520026		Lever, Door Opening				$ 17.78
8	5304520030		Pc Board, Touch Pad, User Interface				$ 187.97
9	4056018064		Pc Board, Main Control		Appelez-nous	-
10	5304519326		Pc Board, Display				$ 184.68
11	4056021118		Door Assembly, Complete, W/pcb		Appelez-nous	-
12	5304520033		Frame Assembly, Door		Appelez-nous	-
13	5304537448		Latch Assembly, Door		Appelez-nous	-
14	4056021126		Screen, Door, Inner		Appelez-nous	-
15	5304520034		Spring, Latch Door		Appelez-nous	-
16	4056021134		Door Screen, Glass, Front		Appelez-nous	-
17	5304520038		Panel, Door, Black, Outer				$ 104.50
18	5304520035		Gasket, Door		Appelez-nous	-
20	5304519333		Hinge, Door, Upper				$ 24.62

    View Diagram in Separate Window       Print Part List
