Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
New Model Search:

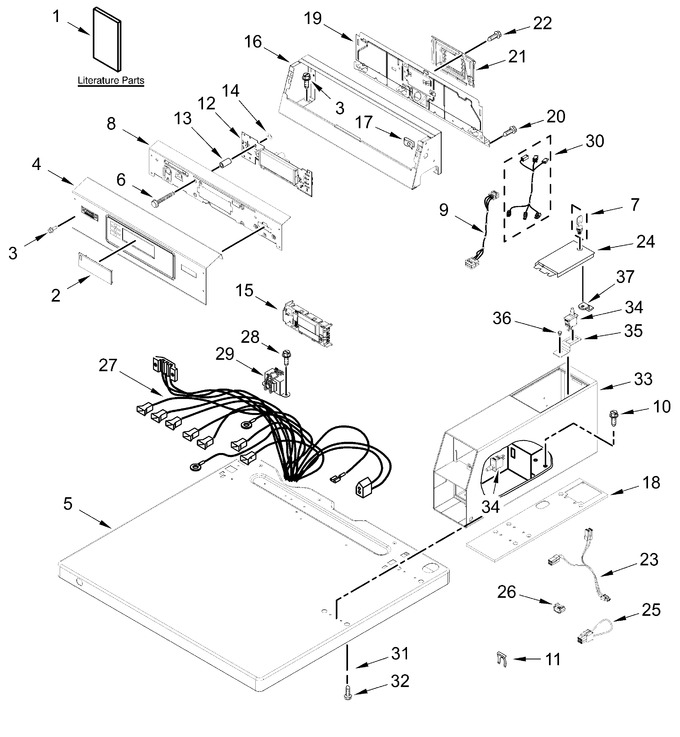

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11637765 | Cover, Display (Replaces: W11565137) |
|
$ 59.65 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 4 | W11113915 | Facia (Replaces: W10845283) |
|
- | |||||
| 5 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 6 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 7 | W11191256 | Assembly, Lock Access Door (Replaces: W10899602) |
|
$ 32.33 | |||||
| 8 | W11743883 | Bracket, Control (Replaces: W11407434) |
|
- | |||||
| 9 | W11743888 | Harness, Ui (Replaces: W11554061) |
|
- | |||||
| 10 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 11 | W11704629 | Relief, Strain (power Cord) (Replaces: 8316644) |
|
- | |||||
| 12 | W11759236 | Control, User Interface (Replaces: W11456058) |
|
- | |||||
| 13 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 14 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 7.91 | |||||
| 15 | W11743884 | Control Board (Replaces: W11487487) |
|
- | |||||
| 16 | W10461094 | Console |
|
$ 159.97 | |||||
| 17 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 18 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 19 | W11759238 | Panel, Rear Console (Replaces: W11447698) |
|
- | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 21 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 22 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 23 | W11096090 | Harness, Wire (service Switch) (Replaces: W10211244) |
|
$ 11.48 | |||||
| 24 | W11283272 | Assembly, Service Door (Replaces: W11269277) |
|
$ 95.29 | |||||
| 25 | W11164086 | Jumper, Coin Sensor (Replaces: W10785124) |
|
- | |||||
| 26 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 27 | W11765027 | Main Harness (Replaces: W11514057) |
|
- | |||||
| 28 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 29 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 193.15 | |||||
| 30 | W11743885 | Harness, Coin Extender (Replaces: W11512935) |
|
- | |||||
| 31 | 3347825 | Plate, Mounting |
|
- | |||||
| 32 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 33 | WPW10529176 | Meter Case (Replaces: W10529176) |
|
$ 273.48 | |||||
| 34 | W11123448 | Switch, Vault Service Door (Replaces: W10133289) |
|
- | |||||
| 35 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 36 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 37 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 69.35 | ||||||
| WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 24.03 | ||||||
| W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | ||||||
| W10446855 | 10a Cord Lock |
|
- | ||||||
| ARIE8FCC04DE3D574430F087FB15D8C2BC1 | Optional Parts (not Illustrated) |
|
- | ||||||
| W11696098 | Installation Instructions, Exp Gr, It, Hu |
|
- | ||||||
| W11696097 | Installation Instructions, Exp E,f,s |
|
- | ||||||
| W11736276 | Owners Manual, Ele And Gas Gr, It, Hu |
|
- | ||||||
| W11736273 | Owners Manual, Ele And Gas E, F, S |
|
- | ||||||
| W11692453 | Tech Sheet |
|
- |
