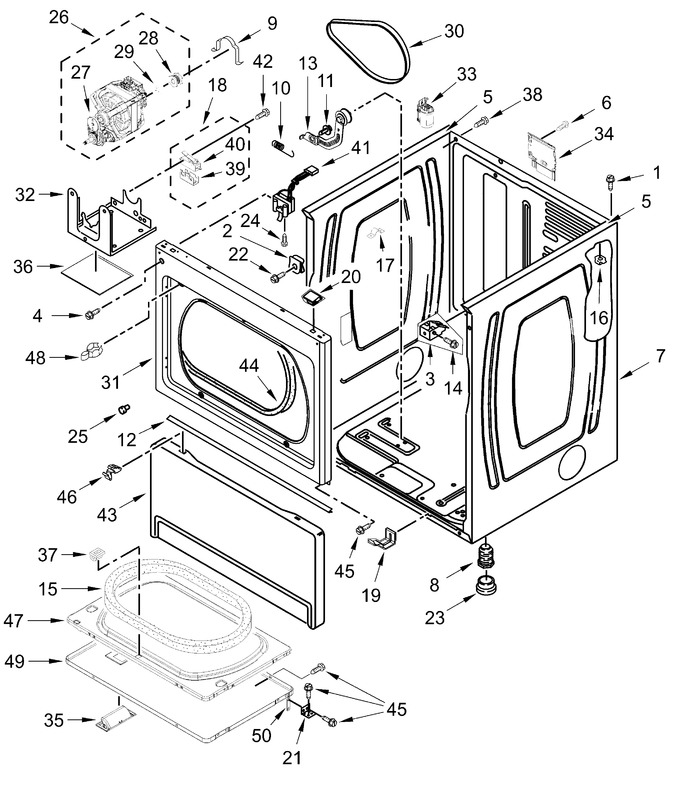

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 2 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 4 | W10879744 | Screw |
|
- | |||||
| 5 | W10181918 | Seal, Plate Cover |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: W10748311) |
|
Immediately | $ 7.04 | ||||
| 7 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 377.29 | |||||
| 8 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 21.16 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10576519 | Seal, Deflector |
|
- | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 15 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 16 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 18 | W11236387 | Assembly, Switch (Replaces: W11159572) |
|
- | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 20 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 21 | WPW10279703 | Assembly, Hinge And Pin (silver) (Replaces: W10279703) |
|
$ 65.00 | |||||
| 22 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 24 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 25 | 693152 | Bumper |
|
$ 9.86 | |||||
| 26 | W11215537 | Assembly, Motor (Replaces: W10918087) |
|
$ 480.41 | |||||
| 27 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 28 | W10167237 | Pulley |
|
- | |||||
| 29 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | W10234293 | Panel, Front |
|
- | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | W11671470 | Filter, Rfi Line (Replaces: W11541973) |
|
- | |||||
| 34 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 377.29 | |||||
| 35 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 68.18 | ||||
| 36 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 19.96 | |||||
| 37 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 38 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 39 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 23.76 | |||||
| 40 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 42 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 43 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 258.32 | |||||
| 48 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 49 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 233.43 | |||||
| 50 | W10191265 | Plug, Hinge (white) |
|
$ 39.85 | |||||
| W10470674 | Kit, 4-way Venting |
|
Immediately | $ 68.99 | |||||
| ARI49056CBCEA95B374289EE824637D0633 | Dryer Exhaust Kit Not Included |
|
- | ||||||
| 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
