SELECT A DIAGRAM

Basket And Tub Parts

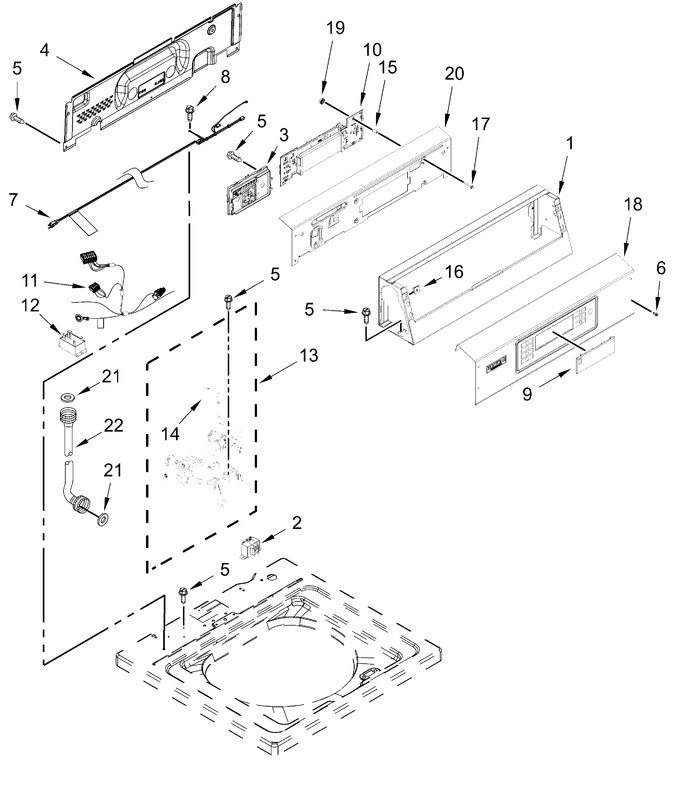

Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Meter Case Parts


Optional Parts (not Included)


Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461094		Console				$ 159.97
2	W10751202		Transformer, 240-22.5 Vac   (Replaces: W10633921)				$ 193.15
3	W11777418		Control Unit Assembly, Machine & Motor   (Replaces: W11772721)		Appelez-nous	-
4	W11767709		Panel, Console Rear Cover   (Replaces: W11458924)		Appelez-nous	-
5	W11685943		Screw   (Replaces: W10660565)				$ 12.83
6	WPW10131119		Screw   (Replaces: W10131119)				$ 6.26
7	W11323676		Cord, Power (australia)		Appelez-nous	-
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
9	W11637765		Cover, Display   (Replaces: W11565137)				$ 59.65
10	W11761404		User Interface   (Replaces: W11456057)				$ 306.83
11	W11298254		Harness, Upper		Appelez-nous	-
12	W11295313		Relay		Appelez-nous	-
13	W11767711		Inlet Assembly, Water   (Replaces: W11577137)		Appelez-nous	-
14	W11767710		Harness, Valve   (Replaces: W11567611)		Appelez-nous	-
15	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
16	WPW10131123		U-nut   (Replaces: W10131123)				$ 6.94
17	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
18	W11103731		Fascia   (Replaces: W10821631)		Appelez-nous	-
19	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
20	W11743883		Bracket, Control   (Replaces: W11407434)		Appelez-nous	-
21	WP16123		Washer, Hose   (Replaces: W10242307)				$ 6.93
22	WPW10489648		Cold Water Inlet Hose   (Replaces: W10489648)				$ 69.40
	W11318407		Cord, Power (europe)		Appelez-nous	-
	WPW10489643		Hot Water Inlet Hose   (Replaces: W10489643)				$ 70.16
	W11318406		Cord, Power (united Kingdom)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
