Basket And Tub Parts
Controls And Water Inlet Parts
Gearcase, Motor And Pump Parts
Meter Case Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

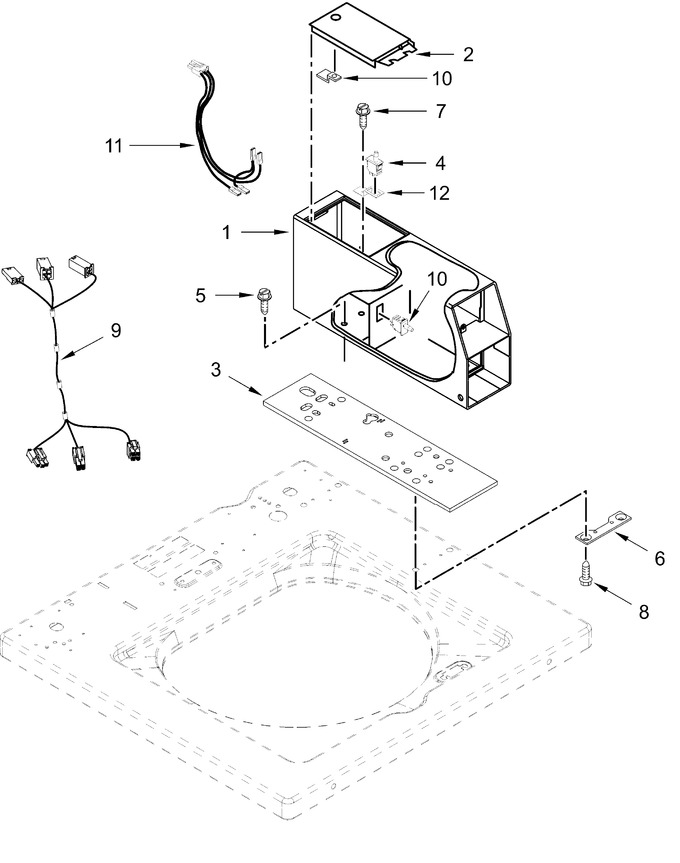

| 1 | WPW10529176 | Meter Case (Replaces: W10529176) |
|
$ 273.48 | |||||
| 2 | W11283272 | Assembly, Service Door (Replaces: W11269277) |
|
$ 95.29 | |||||
| 3 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 4 | W11123448 | Switch, Vault Service Door (Replaces: W10133289) |
|
- | |||||
| 5 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 6 | 3347825 | Plate, Mounting |
|
- | |||||
| 7 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 8 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 9 | W11743885 | Harness, Coin Extender (Replaces: W11512935) |
|
- | |||||
| 10 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 11 | W11096090 | Harness, Wire (service Switch) (Replaces: W10211244) |
|
$ 11.48 | |||||
| 12 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- |
