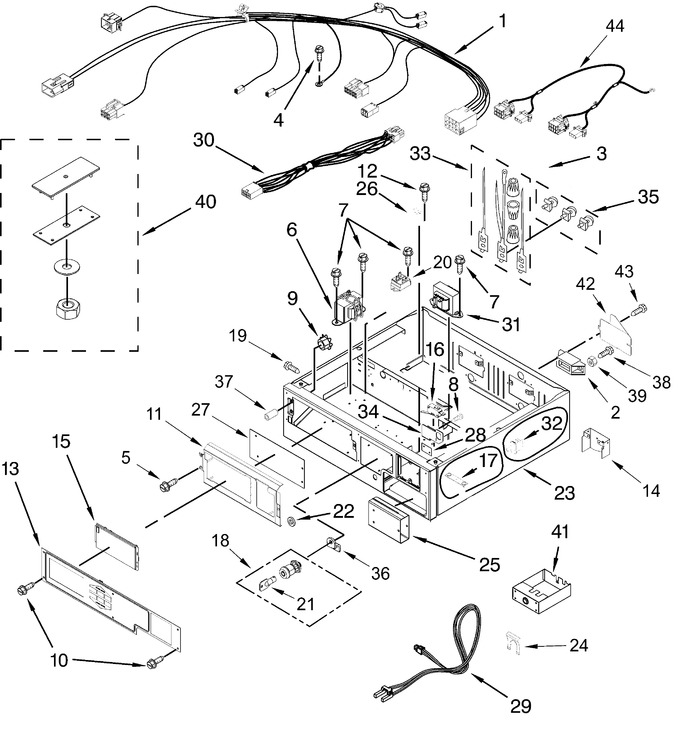

SELECT A DIAGRAM

Control Panel And Separator Parts


Door Parts


Lower Cabinet And Front Panel Parts


Optional Parts (not Included)


Upper And Lower Bulkhead Parts


Upper Cabinet And Front Panel Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352125		Harness, Collar (includes Motor Relay)   (Replaces: W10807492)		Appelez-nous	-
2	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: W10773242)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	3400408		Screw		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
13	W11766647		Fascia   (Replaces: W11651082)		Appelez-nous	-
14	W10192090		Bracket, Terminal Block				$ 92.91
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	W10133281		Switch, Service Access		Appelez-nous	-
17	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
18	W11191256		Assembly, Lock Access Door   (Replaces: W10899602)				$ 32.33
19	3400500		Bolt			Immediately	$ 12.03
20	W10827406		Relay, Motor		Appelez-nous	-
21	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
22	2006252		Washer, Nylon		Appelez-nous	-
23	W11743896		Collar   (Replaces: W11455498)		Appelez-nous	-
24	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
25	W11204020		Assembly, Vault Body   (Replaces: W11109083)				$ 361.48
26	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
27	W11743892		Control Board   (Replaces: W11582595)		Appelez-nous	-
28	W10151156		Shield, Sensor Switch		Appelez-nous	-
29	W10226074		Coin-optic Sensor Assembly		Appelez-nous	-
30	W10111027		Jumper, Transformer				$ 41.23
31	W10237958		Transformer 240 - 120 Vac		Appelez-nous	-
32	W11123448		Switch, Vault Service Door   (Replaces: W10133289)		Appelez-nous	-
33	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
34	W10160652		Bracket-switch		Appelez-nous	-
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	W10233256		Cam, Locking Iec				$ 66.19
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
39	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
40	W11416034		Kit, Coin Box Security   (Replaces: W10169579)				$ 113.40
41	W11204019		Box, Coin   (Replaces: W11109086)				$ 140.45
42	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
43	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
44	W11766649		Jumper, Lower To Collar   (Replaces: W11676291)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
