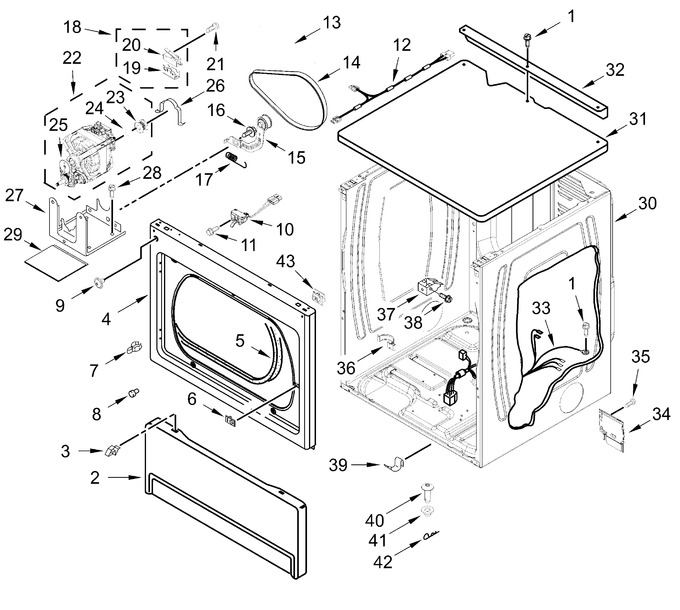

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 2 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 3 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 4 | W11101559 | Panel, Front (Replaces: W10694721) |
|
- | |||||
| 5 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 6 | W10521429 | Cover Strike (white) |
|
- | |||||
| 7 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 18.89 | ||||
| 8 | 693152 | Bumper |
|
$ 9.86 | |||||
| 9 | W10879744 | Screw |
|
- | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 12 | W10231861 | Jumper, Door Switch |
|
- | |||||
| 13 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 5.55 | |||||
| 14 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 15 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 16 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 17 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 18 | W11236387 | Assembly, Switch (Replaces: W11159572) |
|
- | |||||
| 19 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 23.76 | |||||
| 20 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 21 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 22 | W11215537 | Assembly, Motor (Replaces: W10918087) |
|
$ 480.41 | |||||
| 23 | W10167237 | Pulley |
|
- | |||||
| 24 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 25 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 26 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 27 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 28 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 29 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 19.96 | |||||
| 30 | W11384447 | Cabinet (white) |
|
- | |||||
| 31 | 3389351 | Top (white) |
|
- | |||||
| 32 | 3979115 | Bracket, Angle |
|
- | |||||
| 33 | W11352125 | Harness, Main (Replaces: W10807491) |
|
- | |||||
| 34 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 377.29 | |||||
| 35 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 36 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 37 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 38 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 39 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 40 | 3400523 | Bolt, Security |
|
- | |||||
| 41 | 3389233 | Bushing |
|
- | |||||
| 42 | W10117347 | Cotter Pin |
|
- | |||||
| 43 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 6.93 |
