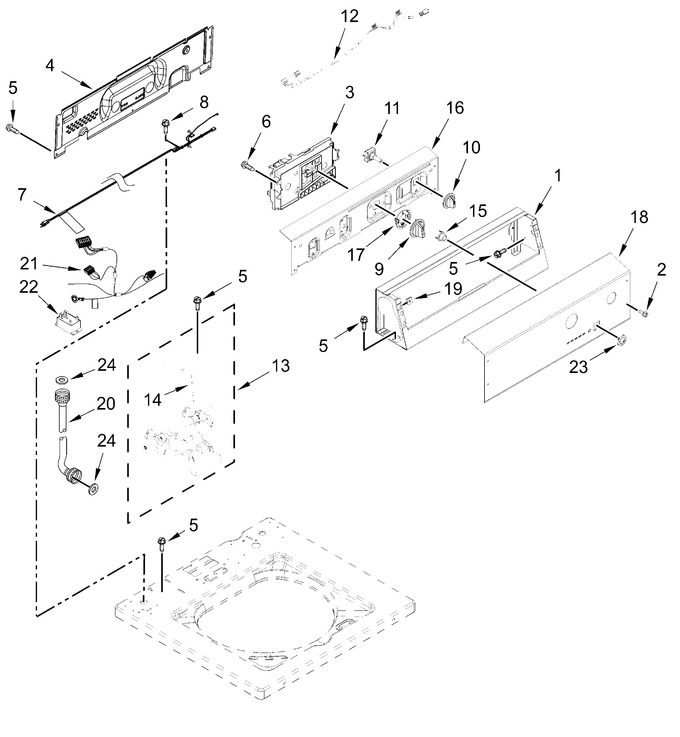

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124005		Console				$ 204.36
2	WPW10131119		Screw   (Replaces: W10131119)				$ 6.26
3	W11831581		Machine And Motor Control Unit Assembly   (Replaces: W11695450)				$ 332.20
4	W11678062		Panel, Console Rear Cover   (Replaces: W11337071)		Appelez-nous	-
5	W11685943		Screw   (Replaces: W10660565)				$ 12.83
6	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
7	W11323676		Cord, Power (australia)		Appelez-nous	-
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
9	W11103226		Timer Knob Assembly (gray)   (Replaces: W10133504)				$ 61.07
10	W11199426		Knob And Bumper Assembly (gray)   (Replaces: W10461097)				$ 8.32
11	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 105.68
12	W11752208		Harness, Upper E-star   (Replaces: W10694672)				$ 18.73
13	W11104125		Inlet Assembly, Water   (Replaces: W10843664)				$ 167.80
14	W10917281		Harness, Valve		Appelez-nous	-
15	WPW10461117		Push Button, Start   (Replaces: W10461117)				$ 62.01
16	W10461066		Bracket, Back		Appelez-nous	-
17	W10828903		Insert, Encoder Stop (7 Position)		Appelez-nous	-
18	W11103732		Fascia   (Replaces: W10829505)		Appelez-nous	-
19	WPW10131123		U-nut   (Replaces: W10131123)				$ 6.94
20	WPW10489648		Cold Water Inlet Hose   (Replaces: W10489648)				$ 69.40
21	W11336973		Harness, Led		Appelez-nous	-
22	W11295313		Relay		Appelez-nous	-
23	W10510149		Bezel - Pts			Immediately	$ 24.54
24	WP16123		Washer, Hose   (Replaces: W10242307)				$ 6.93
	W11318406		Cord, Power (united Kingdom)		Appelez-nous	-
	W11318407		Cord, Power (europe)		Appelez-nous	-
	WPW10489643		Hot Water Inlet Hose   (Replaces: W10489643)				$ 70.16

    View Diagram in Separate Window       Print Part List
