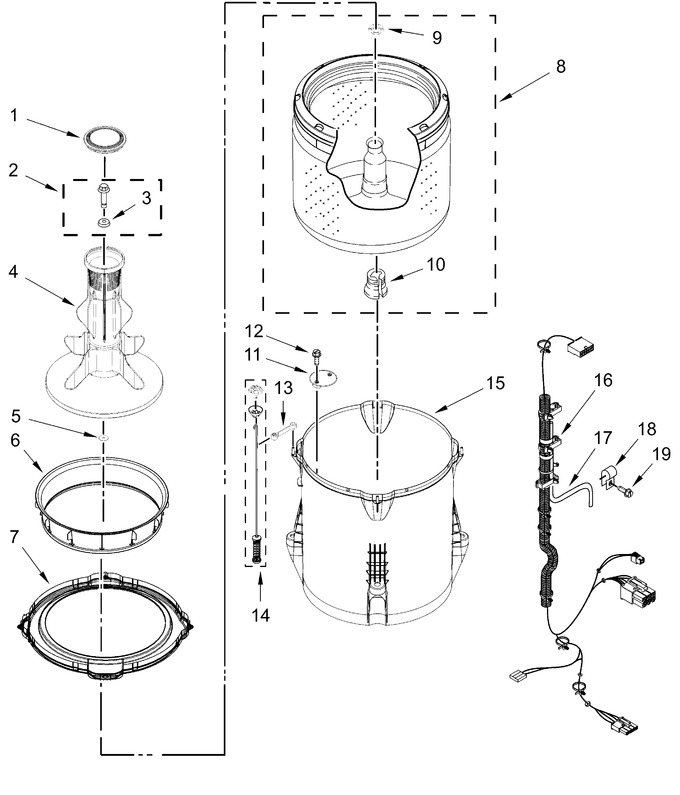

Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10131111		Cap, Agitator   (Replaces: W10131111)			Immediately	$ 7.64
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 4.72
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
4	WPW10131112		Agitator   (Replaces: W10131112)			Immediately	$ 111.72
5	W10832827		Rubber Washer, Impeller   (Replaces: W10755559)		Appelez-nous	-
6	W11222084		Adapter, Balance Ring   (Replaces: W10424289)			Immediately	$ 62.44
7	WPW10461196		Ring, Tub   (Replaces: W10461196)			Immediately	$ 158.83
8	W10738339		Basket Assembly   (Replaces: W10389330)				$ 239.27
9	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
10	W11084139		Block, Basket Drive   (Replaces: W10198148)			Immediately	$ 15.37
11	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 55.94
12	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.04
13	W11403873		Strap, Snubber   (Replaces: W10839119)			Immediately	$ 22.27
14	W11682068		Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls)   (Replaces: W10821954)			Immediately	$ 49.81
15	W10371566		Tub   (Replaces: W10238320)				$ 305.43
16	W11740606		Harness, Lower (includes Pressure Hose & Cable Tie)   (Replaces: W11664277)			Immediately	$ 208.49
17	WP353244		Hose, Pressure Switch   (Replaces: W10531633)			Immediately	$ 53.94
18	W10005430		Clamp, Cable			Immediately	$ 8.17
19	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.20
