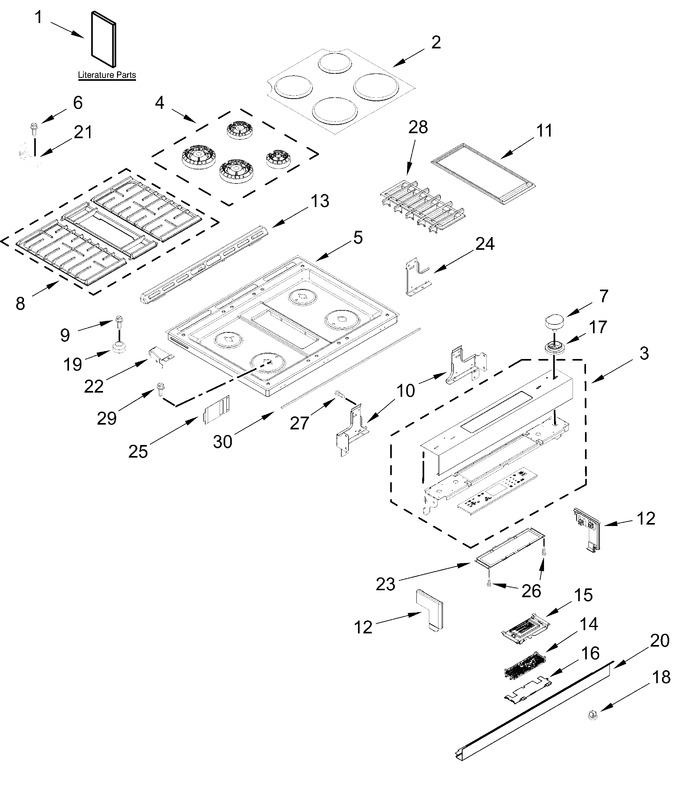

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11834859		Burner Cap Kit (black)   (Replaces: W11352138)		Appelez-nous	-
3	W11834912		Console (stainless)   (Replaces: W11606822)				$ 457.43
4	W11671543		Burner Kit (set Of 4)   (Replaces: W11600788)				$ 108.32
5	W11754708		Cooktop (stainless)   (Replaces: W11120004)				$ 520.47
6	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
7	W11647016		Knob (stainless)   (Replaces: W11592981)				$ 37.62
8	W11451474		Grate (black)   (Replaces: W11382964)				$ 312.78
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Bracket,support (left)   (Replaces: W11563529)				$ 25.76
11	W10432544		Griddle			Immediately	$ 51.00
12	W10557751		Endcap (stainless, Left)				$ 144.73
13	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 121.73
14	W11802926		Electrical, Control   (Replaces: W11603774)				$ 347.23
15	W11108634		Display, Assembly   (Replaces: W10759326)				$ 505.38
16	W10558372		Bracket, Control				$ 21.51
17	W11752207		Bezel (stainless)   (Replaces: W11592976)				$ 49.29
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.28
19	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 12.78
20	W10743281		Console, Lower Panel (stainless)		Appelez-nous	-
21	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 63.54
23	W10557780		Bracket , Control				$ 31.44
24	W10598048		Bracket, Console (center)				$ 22.05
25	W11158783		Shield, Keypad		Appelez-nous	-
26	7101P42860		Screw, Handle		Appelez-nous	-
27	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
28	W10752102		Grill (black)				$ 196.82
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
30	W11620671		Gasket, Console   (Replaces: W11512127)				$ 21.53
	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
	W11652322		Owners Manual		Appelez-nous	-
	W11565454		Tech Sheet		Appelez-nous	-
	W11615560		Dimension Guide		Appelez-nous	-
	W11676998		Quick Start Guide		Appelez-nous	-
	W11198274		Harness, Down Draft Fan Jumper				$ 100.91
	W11768721		Harness, Main   (Replaces: W11653114)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11604189		Control Guide		Appelez-nous	-
	W11643128		Downdraft Template   (Replaces: W10817089)				$ 12.35
	W10162252		Brace, Corner (right)				$ 67.37
	W11563527		Bracket, Support (right)		Appelez-nous	-
	W10557754		Endcap (stainless, Right)				$ 144.73
