Blower Parts
Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

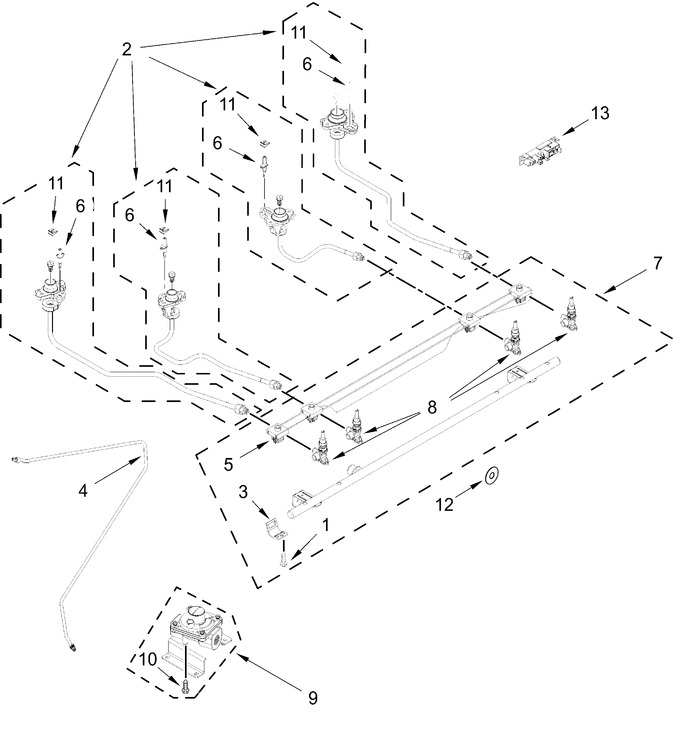

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577790 | Screw |
|
- | |||||
| 2 | W11186525 | Orifice, Assembly (15k) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 19.50 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 80.78 | |||||
| 5 | W11596358 | Harness, Spark Switch |
|
- | |||||
| 6 | W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 41.45 | |||||
| 7 | W11602207 | Manifold, Assembly |
|
$ 214.83 | |||||
| 8 | W11620675 | Valve, Gas (Replaces: W11511818) |
|
$ 60.27 | |||||
| 9 | W10661850 | Regulator And Bracket, Assembly |
|
$ 112.50 | |||||
| 10 | W10416084 | Screw |
|
- | |||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 10.71 | ||||
| 12 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 17.40 | |||||
| 13 | W11693498 | Module, Spark (Replaces: W11349967) |
|
$ 90.61 | |||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.26 | ||||||
| W11126047 | Kit, Lp Conversion (Replaces: W10566083) |
|
Immediately | $ 108.43 | |||||
| W11186512 | Orifice, Assembly (17k) |
|
$ 63.10 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11186508 | Orifice, Assembly (5k) |
|
$ 65.41 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11186521 | Orifice, Assembly (9.2k) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI953D0CD9882CCDFCDBAEB8406738A4EF | (left Front, Left Rear, Right Front, Right Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11620677 | Valve, Gas (Replaces: W11511824) |
|
$ 60.27 | ||||||
| W11620676 | Valve, Gas (Replaces: W11511819) |
|
$ 60.27 | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| W11661929 | Electrode, Burner (Replaces: W10669526) |
|
Immediately | $ 42.83 | |||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 41.49 | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 34.21 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- |
