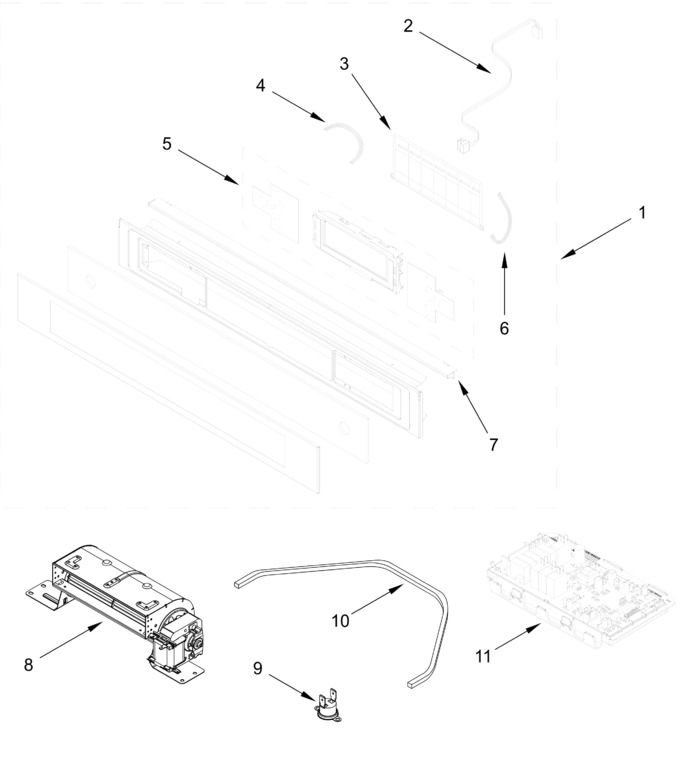

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768653 | Control Panel Assembly (Replaces: W11768576) |
|
- | |||||
| 2 | W11348035 | Harness, Touch Display |
|
Immediately | $ 60.62 | ||||
| 3 | W11348132 | Cover, Control |
|
- | |||||
| 4 | W11348036 | Wiring, Right Control |
|
Immediately | $ 62.20 | ||||
| 5 | W11768654 | User Interface (Replaces: W11768577) |
|
- | |||||
| 6 | W11348033 | Wiring, Left Control |
|
- | |||||
| 7 | W11236834 | Trim, Top (stainless) (Replaces: W10914742) |
|
$ 84.52 | |||||
| 8 | W11347859 | Blower, Cooling Fan |
|
Immediately | $ 352.26 | ||||
| 9 | W11259047 | Thermostat (165c, Includes Bracket) (Replaces: W10490220) |
|
Immediately | $ 169.52 | ||||
| 10 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 11 | W11683043 | Appliance Control Unit (Replaces: W11681217) |
|
$ 380.86 |
