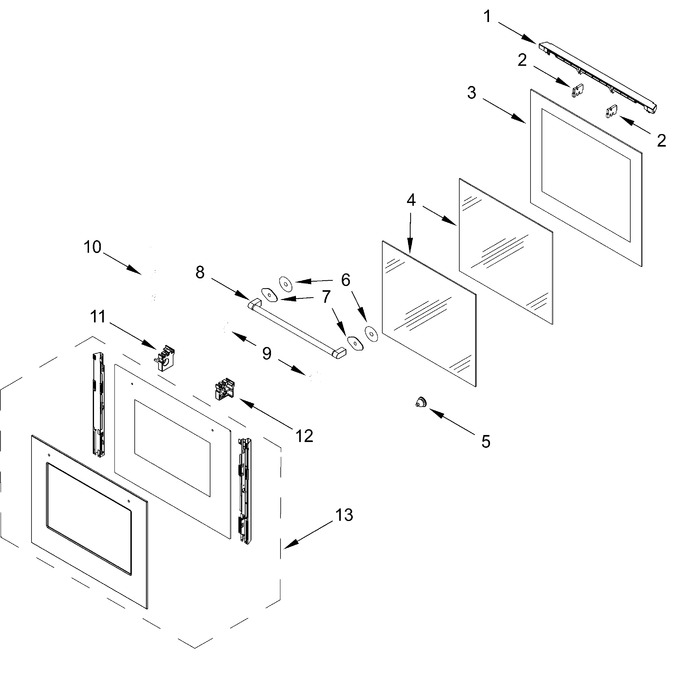

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10518369 | Vent, Door Trim Top |
|
Immediately | $ 107.69 | ||||
| 2 | W10518307 | Spacer, Door Trim Top |
|
$ 18.83 | |||||
| 3 | W11236916 | Inner Door Glass Assembly (Replaces: W10750365) |
|
$ 345.42 | |||||
| 4 | W11778507 | Glass, Door Interior (Replaces: W10518376) |
|
- | |||||
| 5 | W10519004 | Spacer, Oven Door Glass |
|
$ 20.03 | |||||
| 6 | W11236907 | Washer, Door Handle (Replaces: W10410709) |
|
$ 15.63 | |||||
| 7 | W10260705 | Spacer, Rubber |
|
- | |||||
| 8 | W11236906 | Handle, Door (Replaces: W10713236) |
|
$ 280.84 | |||||
| 9 | 481010387617 | . Support, Oven Door Glass |
|
$ 99.09 | |||||
| 10 | W11683045 | Hinge, Door (Replaces: W11681227) |
|
- | |||||
| 11 | W11509863 | Support, Oven Glass |
|
$ 120.35 | |||||
| 12 | W10518384 | Support, Oven Door Glass |
|
$ 104.06 | |||||
| 13 | W11681228 | Outer Door Assembly |
|
Immediately | $ 469.87 |
