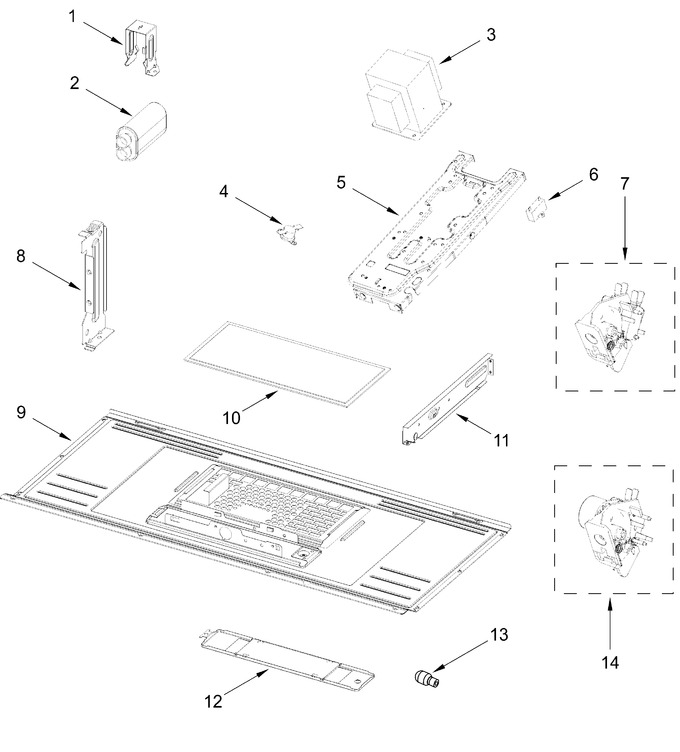

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532063 | Bracket, Capacitor |
|
$ 25.45 | |||||
| 2 | W11846984 | Capacitor, High Voltage (Replaces: W10345331) |
|
- | |||||
| 3 | W11759254 | Transformer, High Voltage (Replaces: W11739997) |
|
$ 98.96 | |||||
| 4 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 37.40 | ||||
| 5 | W11520831 | Chassis |
|
Immediately | $ 56.47 | ||||
| 6 | W11405832 | Capacitor, Hood Motor |
|
$ 24.52 | |||||
| 7 | W11685345 | Upper Interlock Assembly (includes Switches) (Replaces: W11684004) |
|
$ 63.56 | |||||
| 8 | W10313275 | Bracket, Top Cavity |
|
$ 30.53 | |||||
| 9 | W11295401 | Panel, Bottom |
|
$ 115.46 | |||||
| 10 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 13.22 | ||||
| 11 | W11295335 | Support, Ntc |
|
- | |||||
| 12 | W11295403 | Cover, Lamp |
|
- | |||||
| 13 | W11520384 | Lamp, Halogen |
|
Immediately | $ 9.37 | ||||
| 14 | W11685346 | Lower Interlock Assembly (includes Switches) (Replaces: W11684005) |
|
$ 63.56 |
