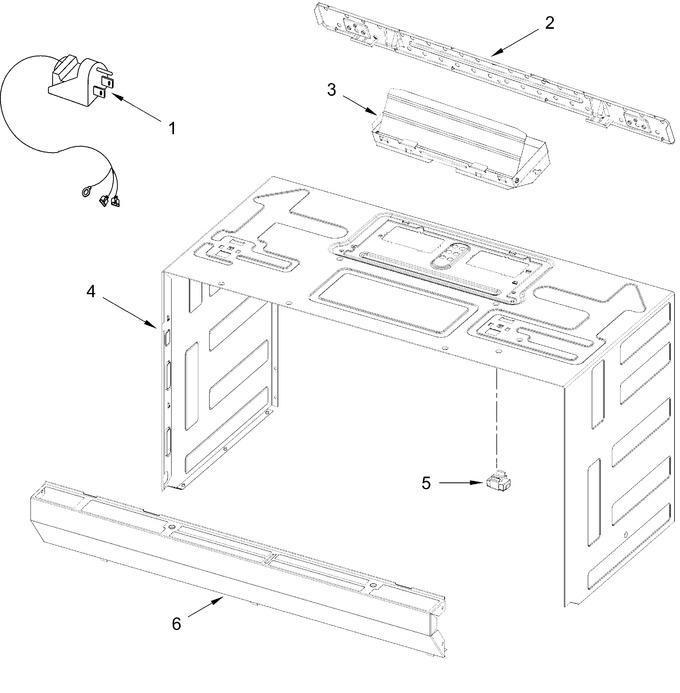

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 156.14 | ||||
| 5 | W11398933 | Mounting Nut Assembly |
|
$ 12.13 | |||||
| 6 | W10845643 | Grille, Vent (black) |
|
$ 92.87 | |||||
| W11301790 | Harness (magnetron To High Voltage Transformer) |
|
Immediately | $ 131.14 | |||||
| W11705233 | Harness, Main (Replaces: W11544117) |
|
$ 77.49 | ||||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | |||||
| ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 | Miscellaneous Parts |
|
- |
