Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3601F106-51 Baffle, Side Panel 01 Appelez-nous -
1 4002F103-80 Back, Main 01 Appelez-nous -
2 7401P015-60 Block, Terminal 01 Appelez-nous -
3 7116P002-60 Bolt, Door Lock 01 Appelez-nous -
4 4011F198-80 Bottom, Burner Box 25 Appelez-nous -
4 4011F180-80 Bottom, Burner Box 17 Appelez-nous -
4 4011F133-80 Bottom, Burner Box 01 Appelez-nous -
5 4006W087-45 Box Vent Assy 01 Appelez-nous -
5 3801F093-51 Bracket 01 Appelez-nous -
5 8028P003-60 Box, Breaker 01 Appelez-nous -
6 3801F017-34 Bracket, Cable Roller 01 Appelez-nous -
6 3801F095-45 Bracket, Clock Mtg 01 Appelez-nous -
7 3801F099-20 Bracket, Ind Lt 01 Appelez-nous -
7 1406252 Light, Indicator 10 Appelez-nous -
8 3801F024-51 Bracket 01 Appelez-nous -
9 3801F170-51 Bracket, Switch Mtg 01 Appelez-nous -
9 3801F098-51 Bracket, Switch Mtg 01 Appelez-nous -
10 8002P014-60 Catch 01 Appelez-nous -
11 3818F027-45 Channel, Switch 01 Appelez-nous -
11 7111P002-60 Clamp, Wire 3/4 01 Appelez-nous -
12 7112P019-60 Clip, Hinge Pin 01 Appelez-nous -
12 7112P003-60 Clip, Latch Handle 01 Appelez-nous -
12 7112P029-60 Clip 01 Appelez-nous -
13 7601P180-60 Clock, Electronic 20 Appelez-nous -
13 7740P010-60 Trim, Bezel 07 Appelez-nous -
13 7417P001-60 Connector, Single 01 Appelez-nous -
13 7417P002-60 Connector, Pin 01 Appelez-nous -
13 7720P091-60 Trim, Bezel 01 Appelez-nous -
13 7601P120-60 Clock 01 Appelez-nous -
13 7601P156-60 Clock 17 Appelez-nous -
13 7740P016-60 Trim, Bezel 20 Appelez-nous -
14 4005F302-51 Cover Access 01 Appelez-nous -
15 4005F137-80 Cover, Catch Assy. 01 Appelez-nous -
16 4005F262-51 Cover, Fan 01 Appelez-nous -
16 4005F163-51 Cover, Switch 01 Appelez-nous -
16 4005F299-51 Cover, Redundant Thermo 01 Appelez-nous -
17 4005F159-45 Cover, Vent Box 01 Appelez-nous -
18 4005F157-80 Cover, Wire Housing 01 Appelez-nous -
19 7756P042-60 Extrusion 01 Appelez-nous -
20 7750P023-60 Trim, Side (left) 01 Appelez-nous -
20 7750P022-60 Extrusion (right) 01 Appelez-nous -
20 W10828565 Screw, Black   (Replaces: 7101P270-60) 01 Special Order $ 6.70

21 7427P004-60 Fan, Assembly 01 Appelez-nous -
22 2201F061-19 Front, Oven Upper 01 Appelez-nous -
22 4012F018-80 Front,burner Box Bottom 01 Appelez-nous -
22 W10124350 Not Required Part Or See Note Upper Front (not Replaceable) 01 Appelez-nous -
23 7201P003-60 Gasket, Element 01 Appelez-nous -
24 7201P014-60 Gasket, Housing 01 Appelez-nous -
25 7201P015-60 Gasket, Lamp Retainer 01 Appelez-nous -
26 7201P036-60 Gasket, Oven 01 Special Order $ 118.90

27 7912P051-60 Glass, Control (xw) 08 Appelez-nous -
27 7912P012-60 Glass, Control 01 Appelez-nous -
28 7902P057-60 Glass, Lamp Guard 01 Appelez-nous -
28 8016P008-60 Glide, Oven Door Hinge 01 Appelez-nous -
29 7701P068-60 Handle, Latch (blk) 01 Appelez-nous -
30 W10124350 Not Required Part Or See Note Handle (not Required) 08 Appelez-nous -
30 7711P008-60 Knob, Light Switch 01 Appelez-nous -
30 7701P025-60 Handle, Oven Door 01 Appelez-nous -
31 7106P024-60 Hinge (incl. Spring) 03 Appelez-nous -
31 3418F030-34 Hinge, Oven Door (rt) 01 Appelez-nous -
31 3418F029-34 Hinge, Oven Door (lt) 01 Appelez-nous -
32 4001F045-51 Housing 01 Appelez-nous -
33 4001F020-23 Housing, Lamp 01 Appelez-nous -
33 4001F020-19 Housing, Lamp 22 Appelez-nous -
33 7002P048-60 Insulation, Door Lock 01 Appelez-nous -
33 3604F159-45 Shield Insulation, Catch 06 Appelez-nous -
34 7711P449-60 Button, Control Set 20 Appelez-nous -
34 7711P335-60 Button, Set 01 Appelez-nous -
35 W10124350 Not Required Part Or See Note Lens, Clock (not Required) 20 Appelez-nous -
35 7711P172-60 Knob, Clock (blk) 01 Special Order $ 23.55

35 7730P003-60 Lens, Clock 01 Appelez-nous -
35 WP7711P492-60 Knob, Clock (blk)   (Replaces: 7711P431-60) 20 Special Order $ 12.13

35 7711P452-60 Button, Clock Set 20 Appelez-nous -
35 7730P006-60 Lens 07 Appelez-nous -
35 7711P171-60 Knob, Clock (button-blk) 01 Special Order $ 19.90

36 8009P009-60 Lever, Door Lock 01 Appelez-nous -
36 8009P018-60 Lever, Door Lock 25 Appelez-nous -
37 40A15 Bulb, Oven   (Replaces: 7407P026-60) 01 In-Stock Immediately $ 1.98

38 Y3401F02019 Pan, Broil 31 Appelez-nous -
38 1555271 Nut, Broil Shield 01 Appelez-nous -
38 7807P004-60 Link, Switch 01 Appelez-nous -
38 7103P045-60 Nut, Nylon 01 Appelez-nous -
38 1555267 Nut, Twin Speed 01 Appelez-nous -
38 4396923 Pan, Broil   (Replaces: 3401F004-23) 01 In-Stock Immediately $ 52.04

38 7807P012-60 Link, Door Lock 25 Appelez-nous -
39 7113P002-60 Pin, Hinge 01 Special Order $ 9.05

39 3605F163-80 Plate Conduit 01 Appelez-nous -
40 3605F172-80 Plate 20 Appelez-nous -
40 7801P030-60 Rack, Oven 01 Special Order $ 57.14

40 3605F161-80 Plate Switch Mtg 01 Appelez-nous -
40 12001656 Probe, Oven Sensor   (Replaces: 7430P005-60) 04 In-Stock Immediately $ 39.55

40 12001656 Sensor, Oven   (Replaces: 7430P010-60) 29 In-Stock Immediately $ 39.55

40 12001656 Probe, Oven Sensor   (Replaces: 7430P003-60) 01 In-Stock Immediately $ 39.55

41 7408P002-60 Receptacle, Lamp 01 Appelez-nous -
41 7401P016-60 Block, Terminal 01 Appelez-nous -
41 7413A002-60 Fan, Resistor Asy 01 Appelez-nous -
41 7428P007-60 Relay, Board Assy. 01 Appelez-nous -
41 3605F146-51 Plate, Conduit Reinforcement 05 Special Order $ 6.06

42 3804F093-80 Retainer, Bottom Ins. 01 Appelez-nous -
42 3804F051-80 Retainer, Glass 01 Appelez-nous -
42 3804F022-45 Retainer 01 Appelez-nous -
42 3804F102-80 Retainer, Bottom Insulation 05 Appelez-nous -
43 7107P017-60 Rivet 01 Appelez-nous -
43 3804F012-45 Retainer, Lamp Guard 01 Appelez-nous -
44 7208P002-60 Seal 01 Appelez-nous -
44 7101P005-60 Screw 01 Appelez-nous -
44 7208P007-60 Seal, Silastic 01 Appelez-nous -
45 3604W155-70 Shield, Lower Vent (blk) 28 Appelez-nous -
45 3604W152-70 Shield,lower Vent (blk) 03 Appelez-nous -
45 WP7103P114-60 Nut, Snap (round-wht)   (Replaces: 7103P039-60) 01 Special Order $ 9.89

46 3604F073-80 Shield, Bottom 01 Appelez-nous -
47 3604F092-45 Shield, Broil 01 Appelez-nous -
48 0787392 Shield, Oven Lamp 01 Appelez-nous -
49 7214P001-60 Sleeve, Switch 01 Appelez-nous -
49 7214P004-60 Sleeve, Heat Shrink 01 Appelez-nous -
49 3604F074-80 Shield, Term 01 Appelez-nous -
49 7214P007-60 Sleeve, Switch (blk) 08 Appelez-nous -
50 7803P031-60 Spring, Door 01 Appelez-nous -
50 3420A034-34 Stop Assy., Hinge 01 Appelez-nous -
51 8019P001-60 Strap Cable 01 Appelez-nous -
52 3807F176-15 Support, Broil Element 01 Appelez-nous -
52 3807F408-45 Support, Catch Assy. 17 Appelez-nous -
52 3807F195-45 Support, Catch Assy. 01 Appelez-nous -
53 W10124350 Not Required Part Or See Note Support, Board (not Required_ 20 Appelez-nous -
53 8004P022-60 Support, Relay Board 01 Appelez-nous -
53 3807F205-45 Support, Oven Rear 01 Appelez-nous -
54 3807F157-80 Support, Terminal Block 01 Appelez-nous -
55 3807F219-51 Support, Therm Disc 01 Appelez-nous -
56 7403P063-60 Switch, High Limit 01 Special Order $ 156.41

56 7403P199-60 Switch, Hi Limit 06 Appelez-nous -
57 7403P166-60 Switch, Hi Limit Glass 01 Appelez-nous -
57 7403P164-60 Switch, Hi-limit 01 Appelez-nous -
58 7403P077-60 Switch----na 01 Appelez-nous -
59 7404P057-60 Thermostat, Redundant 01 Appelez-nous -
59 7403P019-60 Switch, Light 01 Appelez-nous -
59 7403P104-60 Switch, Oven Lamp 08 Appelez-nous -
60 7726P023-60 Trim, End Cap 01 Appelez-nous -
61 8026A009-60 Tube, Oven Vent 01 Appelez-nous -
62 WPY04000041 Element,bake   (Replaces: 7406P010-60) 01 Special Order $ 133.20

62 WPY04000041 Element, Bake   (Replaces: 7406P067-60) 21 Special Order $ 133.20

63 7406P068-60 Element, Broil 21 Appelez-nous -
63 4006F052-45 Vent Box, Top 01 Appelez-nous -
63 7406P032-60 Element, Broil 01 Appelez-nous -
64 4009W030-80 Lining Assy, Inner Side 01 Appelez-nous -
64 4009W066-80 Lining,inner Side(l) 03 Appelez-nous -
65 7752P003-60 Extrusion, Top 01 Appelez-nous -
66 7752P004-60 Extrusion, Filler Trim 01 Appelez-nous -
NI 5170P094-60 Wire Harness 20 Appelez-nous -
NI 5170P088-60 Harness, Oven Sensor 15 Appelez-nous -
NI 5170P065-60 Harness, Oven Sensor 01 Appelez-nous -
NI 5170P064-60 Wire Harness 01 Appelez-nous -
NI W10124350 Not Required Part Or See Note Harness, Relay (not Required) 20 Appelez-nous -
NI 4001F053-51 Housing, Main Wire 01 Appelez-nous -
NI Y3413F01619 Insert, Broil Pan 31 Appelez-nous -
NI 3413F002-23 Insert, Broil Pan 01 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

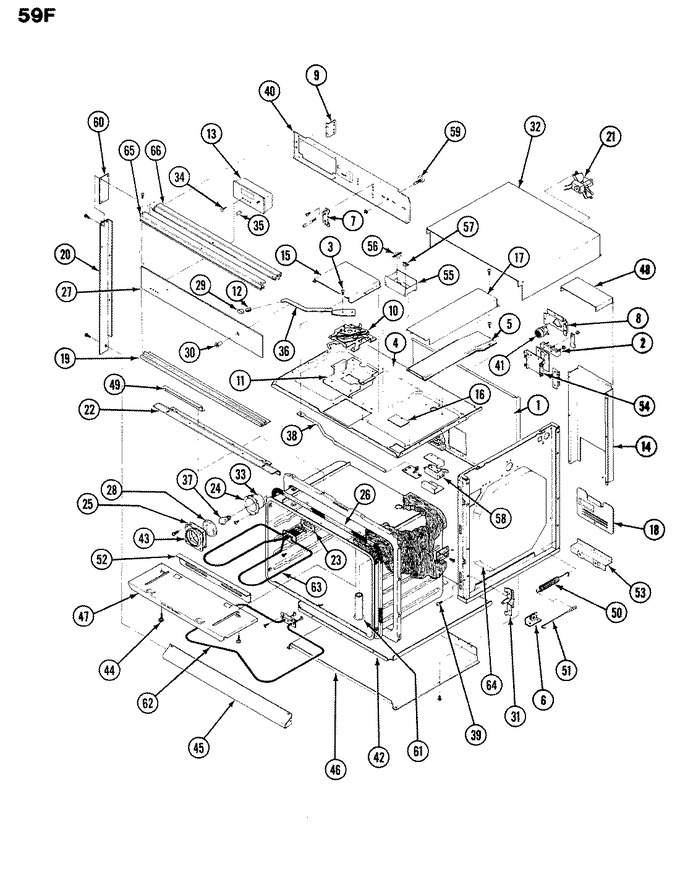

Diagram for B59F-5TXW
