SELECT A DIAGRAM

01 - Control Panel/body

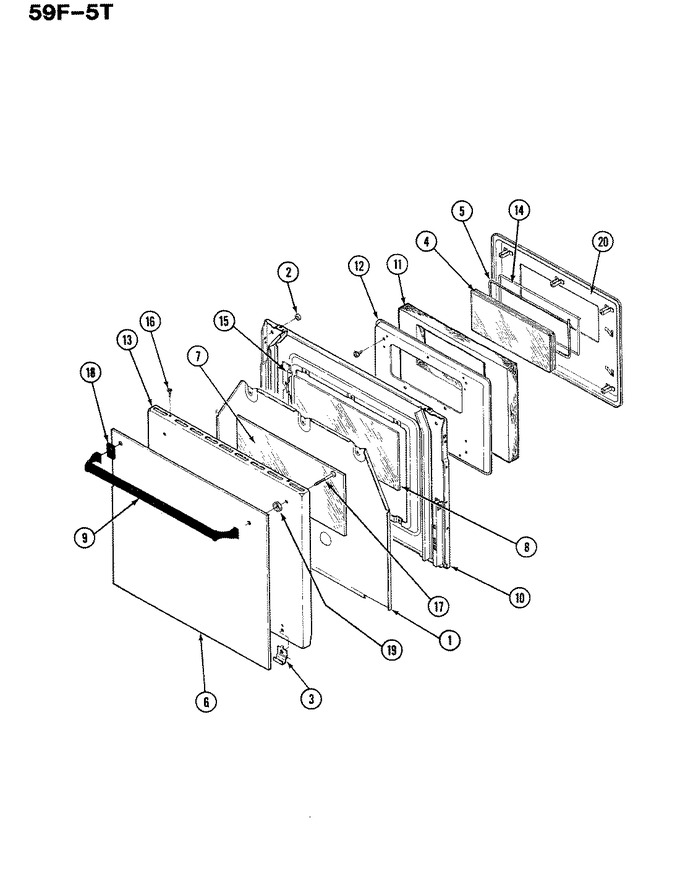

02 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F093-51		Baffle	01	Appelez-nous	-
2	8003P002-60		Bumper Door (round)	01	Appelez-nous	-
2	8003P009-60		Bumper, Door (square)	04	Appelez-nous	-
3	3819F010-71		Clip,glass Retainer (wht)	01	Appelez-nous	-
3	8270P010-60		Tape, Retainer Clip	01	Appelez-nous	-
3	7112P051-60		Clip, Retainer	01	Appelez-nous	-
4	7902S303-60		Window Pak	01	Appelez-nous	-
5	7201P018-60		Gasket, Window	01	Appelez-nous	-
6	7902P283-60		Glass, Door White	01	Appelez-nous	-
7	7902P135-60		Glass, Clear	01	Appelez-nous	-
8	7902P097-60		Glass, Inner	01			$ 63.87
9	W10124350		Not Required Part Or See Note Label, Cleaning (not Required)	01	Appelez-nous	-
9	7701P080-60		Handle, Oven Door	01	Appelez-nous	-
9	8114P274-60		Label (cleaning Inst.)	02	Appelez-nous	-
10	2402W149-15		Lining, Oven Door	03	Appelez-nous	-
10	2402W125-12		Lining Assy, Ov Dr	01	Appelez-nous	-
10	2402W128-15		Lining	02	Appelez-nous	-
10	2402W173-15		Lining	01	Appelez-nous	-
11	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	10			$ 9.89
11	4804F006-60		Insulation Door Pad	01	Appelez-nous	-
12	2410F016-51		Pad, Inner	01	Appelez-nous	-
13	2401W049-71		Panel (white)	01	Appelez-nous	-
14	3804F022-45		Retainer	01	Appelez-nous	-
15	3804F051-80		Retainer, Glass	01	Appelez-nous	-
16	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	01		Immediately	$ 6.85
17	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	01			$ 11.95
17	W11164114		Screw   (Replaces: 7101P162-60)	01			$ 3.76
18	8010P015-60		Spacer, Handle (blk)	01	Appelez-nous	-
19	7803P031-60		Spring, Door	01	Appelez-nous	-
19	74003986		Spacer, Glass   (Replaces: 8010P016-60)	01			$ 13.08
19	8270P010-60		Tape, Retainer Clip	01	Appelez-nous	-
20	2410W041-19		Pad, Door	22	Appelez-nous	-
20	2410W041-15		Pad, Door	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
