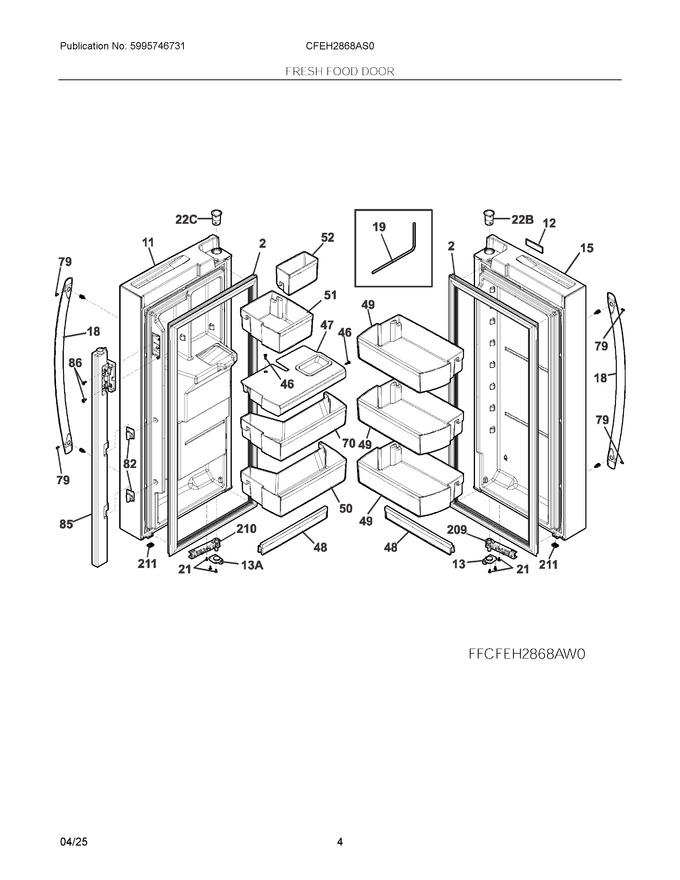

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-dr, Magnetic Ff Wh 36 |
|
Immediately | $ 89.88 | ||||
| 11 | 5304537088 | Door Assembly, Fresh Food, Stainless, Lh |
|
Immediately | $ 357.46 | ||||
| 12 | 5304538102 | Nameplate, Crosley Badge |
|
- | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 5304537087 | Door Assembly, Fresh Food, Stainless, Rh |
|
$ 310.26 | |||||
| 18 | 5304531229 | Handle, Door, Stainless, Fresh Food |
|
$ 153.09 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 46 | 240383413 | Screw, 19.1mm, White |
|
$ 6.07 | |||||
| 47 | 5304535834 | Ice Chute Bracket |
|
- | |||||
| 48 | 5304539162 | Door Bin, Lower, Clip On (Replaces: 5304530951) |
|
Immediately | $ 16.68 | ||||
| 49 | 5304530947 | Door Bin, Standard, Rh Door |
|
$ 132.57 | |||||
| 50 | 5304530953 | Door Bin, 2 Liter, Lh Door |
|
$ 123.10 | |||||
| 51 | 5304530959 | Door Bin, Gallon Disp, Lh Door |
|
Immediately | $ 105.11 | ||||
| 52 | 5304530957 | Door Bin, Slim Disp, Lh Door |
|
- | |||||
| 70 | 5304530955 | Door Bin, Dairy |
|
$ 120.28 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 85 | 5304530853 | Mullion Assembly, Flipper, Gray, 85 #, W/heater |
|
Immediately | $ 112.21 | ||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22B | 241760403 | Bearing, Hinge, Top , Rh Door |
|
Immediately | $ 19.13 | ||||
| 22C | 241760401 | Bearing, Hinge, Top , Lh Door |
|
Immediately | $ 19.13 | ||||
| NI | 5304530940 | Harness, Wiring, Door/dispenser |
|
Immediately | $ 134.23 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 |
