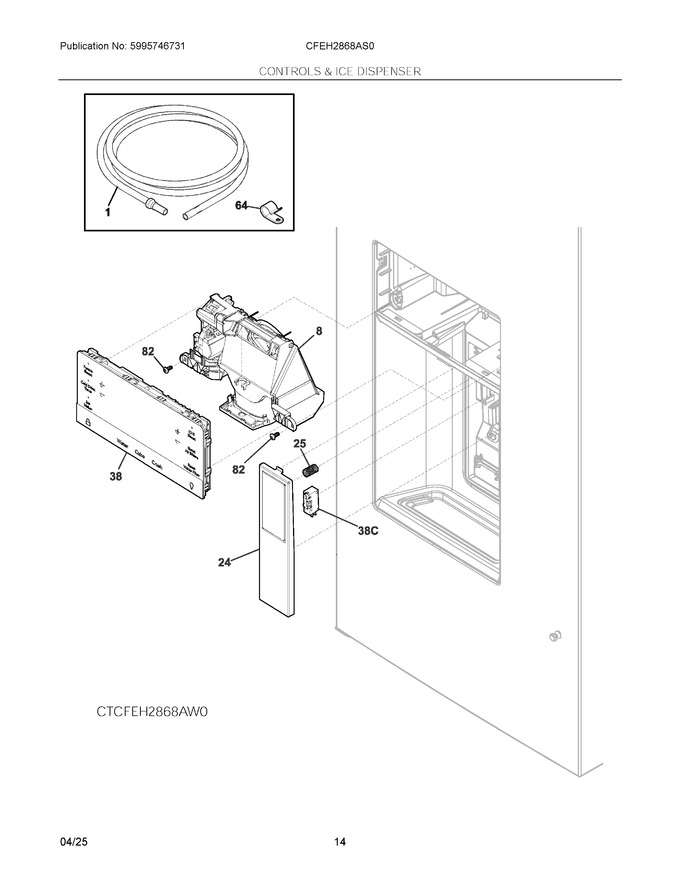

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976448 | Hose â Water, Door, Bm, Cd |
|
Immediately | $ 18.72 | ||||
| 8 | 5304533221 | S/a Pur-i&w Module Tomcat |
|
Immediately | $ 168.98 | ||||
| 24 | 5304530909 | Actuator, Dispenser, Stainless |
|
$ 8.44 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 38 | 5304530931 | Control Assembly, Uib & Dispenser, Stainless, W/membrane |
|
$ 185.35 | |||||
| 64 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 241870104 | Switch, Disp Paddle |
|
Immediately | $ 20.33 | ||||
| NI | 5304530940 | Harness, Wiring, Door/dispenser |
|
Immediately | $ 134.23 | ||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
