01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

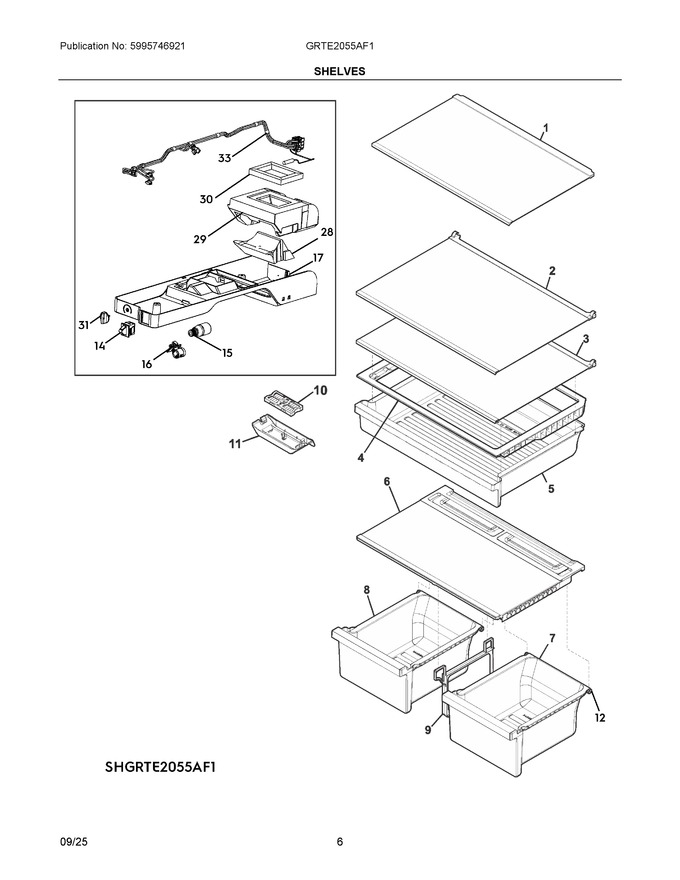

| 1 | 5304537801 | Shelf Assembly, Glass 3mm, Gray, W/trims |
|
- | |||||
| 2 | 5304539283 | Shelf Assembly, Glass 3mm, Gray, W/trims |
|
- | |||||
| 3 | 5304539284 | Shefl Assembly 20'sd, Glass 3mm, Deli Gray, W/trims, Refrigerator |
|
- | |||||
| 4 | 5304524136 | Carriage, Deli Drawer, Fill Width |
|
$ 63.91 | |||||
| 5 | 5304528867 | Drawer, Deli, Full Width |
|
Immediately | $ 107.87 | ||||
| 6 | 5304528862 | Cover Assembly, Crisper, Glass, Complete |
|
$ 193.38 | |||||
| 7 | 5304528861 | Pan Assembly, Crisper, Rh, W/rollers |
|
$ 129.47 | |||||
| 8 | 5304528891 | Pan Assembly, Crisper, Lh, W/rollers |
|
$ 126.37 | |||||
| 9 | 5304528899 | Support, Crisper Cover |
|
Immediately | $ 30.34 | ||||
| 11 | A17635101 | Housing, Air Filter |
|
Immediately | $ 6.51 | ||||
| 12 | 140125478010 | Roller Assembly, Crisper Pan |
|
- | |||||
| 14 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.35 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 10.01 | ||||
| 17 | 5304524322 | Housing, Control Box |
|
$ 108.45 | |||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 16.74 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 16.69 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 18.20 | ||||
| 31 | 5304522319 | Knob, Control |
|
Immediately | $ 8.34 | ||||
| 33 | 5304522320 | Harness, Wiring, Control Box, W/temp Sensor |
|
Immediately | $ 88.52 | ||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 |
