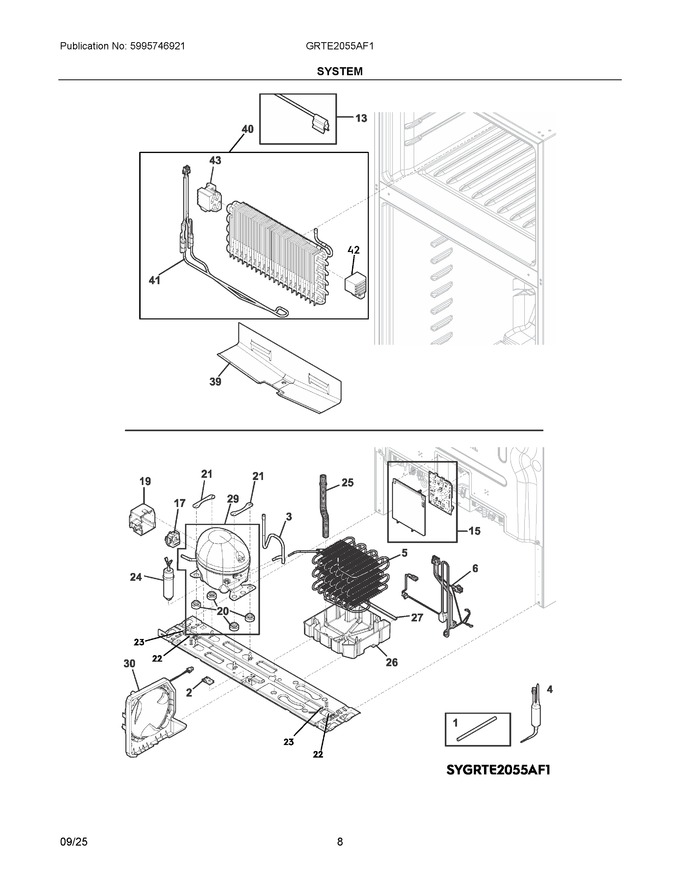

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534455		Tube, Process				$ 5.86
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304537689		Tube-suction, Jumper			Immediately	$ 25.38
4	A19676501		Filter, Drier, Service			Immediately	$ 99.73
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
13	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 84.60
15	140126569262		Pc Board Assembly, &housing, Erf300			Immediately	$ 150.81
17	5304529285		Starter, Compressor, Tsd 2.1			Immediately	$ 72.05
19	5304528888		Cover, Electricals, Compressor				$ 21.59
20	5304522323		Grommet, Compressor				$ 38.68
21	5304524607		Clamp, Compressor				$ 2.89
22	140140613013		Roller, Rear, Hinge, Bottom		Appelez-nous	-
23	140192992018		Shaft, Roller		Appelez-nous	-
24	5304528894		Capacitor, Run, 12uf			Immediately	$ 38.96
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
29	5304537795		S/a Pur Comp Esc55cbt Gen2 Mx			Immediately	$ 186.25
30	5304522173		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 109.66
39	5304519679		Trough, Evap Drain				$ 57.64
40	5304539653		Evaporator Coil, 8 Mm		Appelez-nous	-
41	5304522325		Heater, Defrost			Immediately	$ 91.61
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03

    View Diagram in Separate Window       Print Part List
