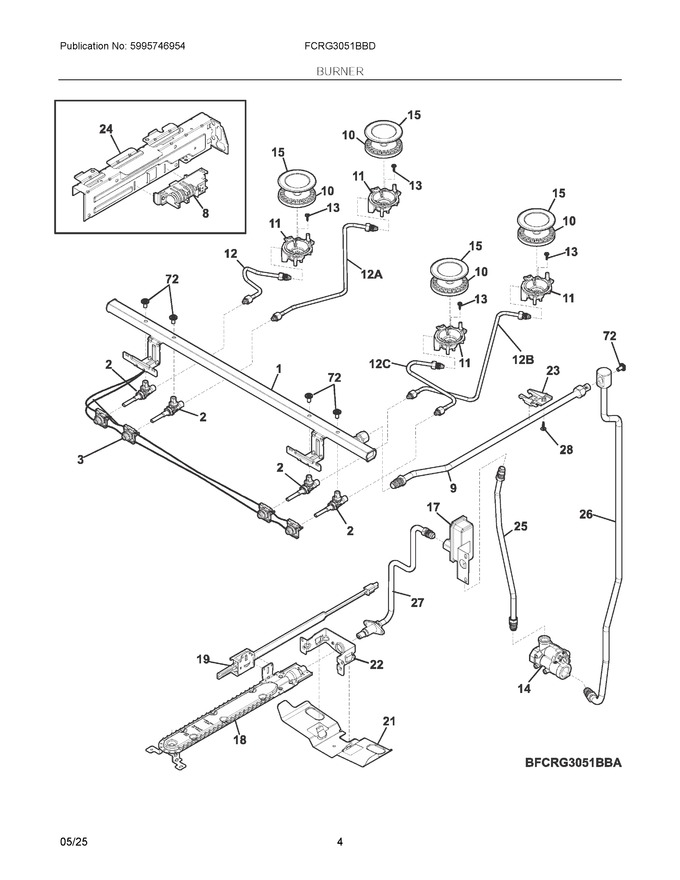

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140141578058		Manifold, Pipe, Burner Valves		Appelez-nous	-
2	5304507282		Valve, Top Burner, Red Stem, 1800btu			Immediately	$ 53.85
3	5304526587		Harness, Assembly, Ignition, W/switches		Appelez-nous	-
8	808608802		Spark Module			Immediately	$ 82.93
9	5304535849		Tube, Connection, Manifold To, Regulator Tube		Appelez-nous	-
10	5304534816		Crown, Burner, Med		Appelez-nous	-
11	5304526429		Ignitor/orifice, Assembly, 9.5k, Med		Appelez-nous	-
12	5304526518		Tube, Burner, Lh Front		Appelez-nous	-
13	8583543244054		Screw, T10 Washer, M2.9 X 13   (Replaces: 354324403)		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	140231866066		Cap, Top Burner, Medium   (Replaces: 354017017)		Appelez-nous	-
17	140172164018		Valve, Safety, Single Port				$ 90.31
18	5304533840		Burner, Bake			Immediately	$ 19.54
19	5304534663		Ignitor, Bake/broil			Immediately	$ 107.87
21	5304533911		Shield, Bake Bracket		Appelez-nous	-
22	5304535280		Bracket, Holder, Bake Orifice				$ 4.15
23	5304534683		Bracket, Tubing		Appelez-nous	-
24	5304534687		Bracket, Harness		Appelez-nous	-
25	5304534667		Tube, Supply, Regulator, To Safety				$ 12.34
26	5304534673		Tube, Supply, Regulator To, Manifold			Immediately	$ 23.24
27	5304534665		Tube Assembly, Bake Burner				$ 75.69
28	5304534684		Screw, Tube Bracket		Appelez-nous	-
72	316215601		Screw, Valve Mtg., 1/4 - 20, T-20				$ 6.17
12A	5304526520		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304526519		Tube, Burner, Rh Rear		Appelez-nous	-
12C	5304526517		Tube, Burner, Rh Front		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	GRLP5		Lp Conversion Kit, W/instructions			Immediately	$ 49.53
NI	3203010		Fastener, U-type, (2)				$ 14.89
NIA	349098702		Screw, T-20 Trilobe, M4 X 7.5, Regulator		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
