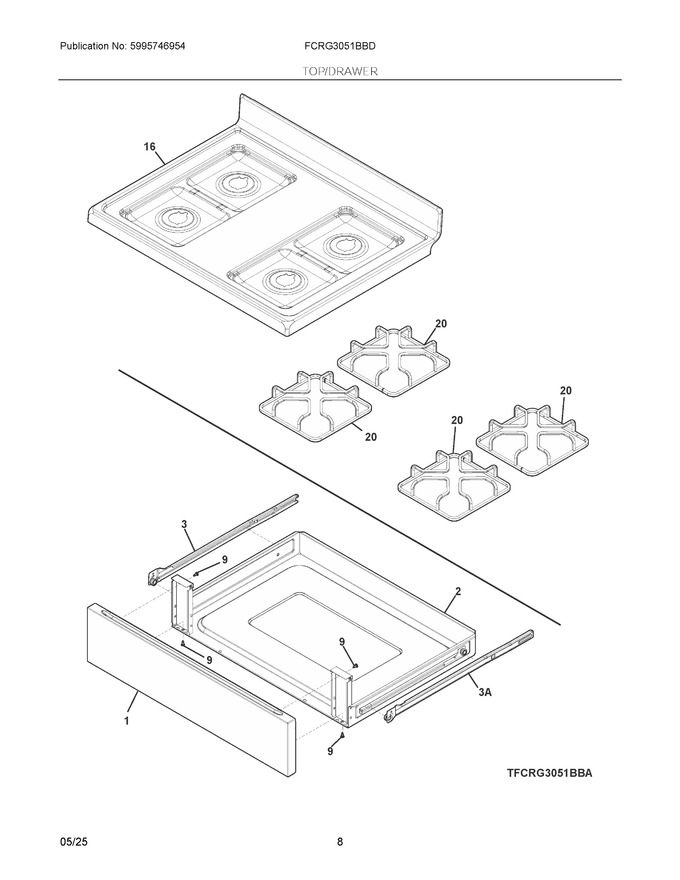

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526302		Panel, Drawer, Black, Outer		Appelez-nous	-
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
16	316610075		Main Top, White, W/brkt		Appelez-nous	-
20	5304536449		Grate, Burner, Black		Appelez-nous	-
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	808608802		Spark Module			Immediately	$ 82.93
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304537475		Clip Cooktop, Allignment		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
