01 - Cover
02 - Front And Wrapper
04 - Control Parts

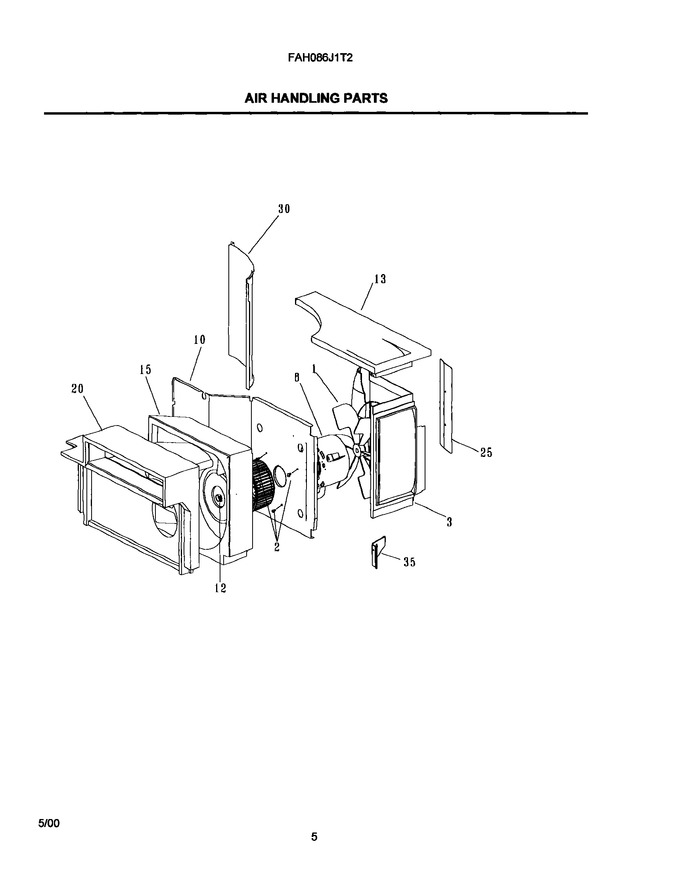

06 - Air Handling Parts
08 - Compressor Parts
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309628901 | Shroud-condenser |
|
- | |||||
| 10 | 309627401 | Bulkhead-18.5 Chassis |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 13 | 309628802 | Top-cover |
|
- | |||||
| 15 | 309622801 | Scroll |
|
$ 56.28 | |||||
| 20 | 309622901 | Scroll Plate |
|
- | |||||
| 25 | 309335201 | Baffle-air |
|
- | |||||
| 30 | 309629001 | Partition-shroud |
|
- | |||||
| 35 | 309335001 | Baffle-condensate |
|
- | |||||
| F1 | 309629102 | Blade-fan Ass`y |
|
- | |||||
| F11 | 309631701 | Blower Wheel |
|
$ 19.90 | |||||
| F8 | 5304408764 | Motor-fan 3sp, W/leads |
|
- |
