01 - Cover
02 - Front And Wrapper
04 - Control Parts
06 - Air Handling Parts

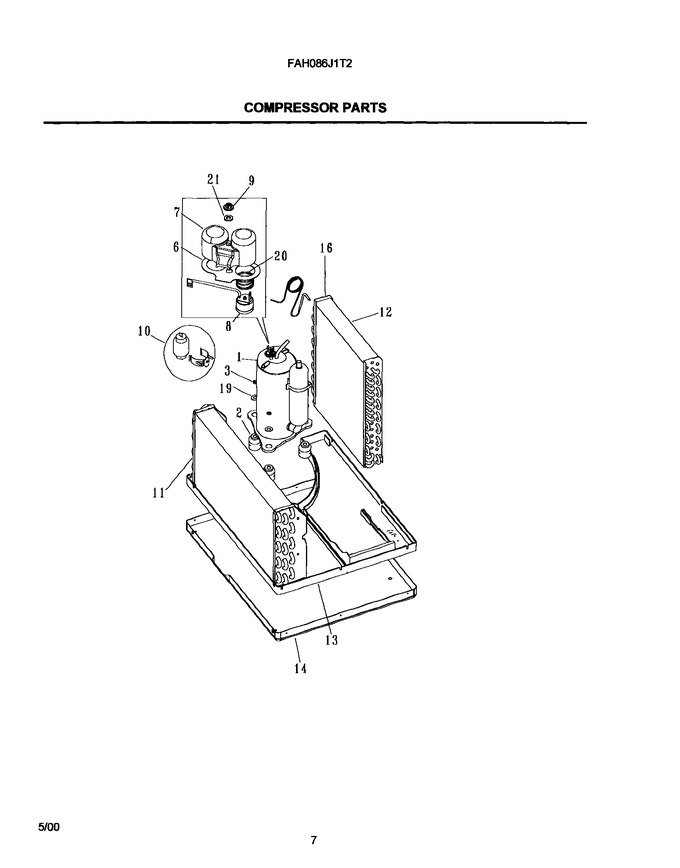

08 - Compressor Parts
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 13 | 309628703 | Tray Base |
|
- | |||||
| 14 | 309632004 | Assy-base/stud |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 20 | NOT REQUIRED | Spring, Overload |
|
- | |||||
| 21 | NOT REQUIRED | Washer, Cover |
|
- | |||||
| F1 | 5304406829 | Compressor-sanyo |
|
$ 620.31 | |||||
| F11 | 309632303 | Evaporator-assy,2rw/17fpi |
|
- | |||||
| F12 | 309641901 | Condenser, 2rw/15fpi |
|
- | |||||
| F16 | 5304415472 | Capillary Tube |
|
- | |||||
| F8 | 3202920 | Overload-mra 98869-443 |
|
- |
