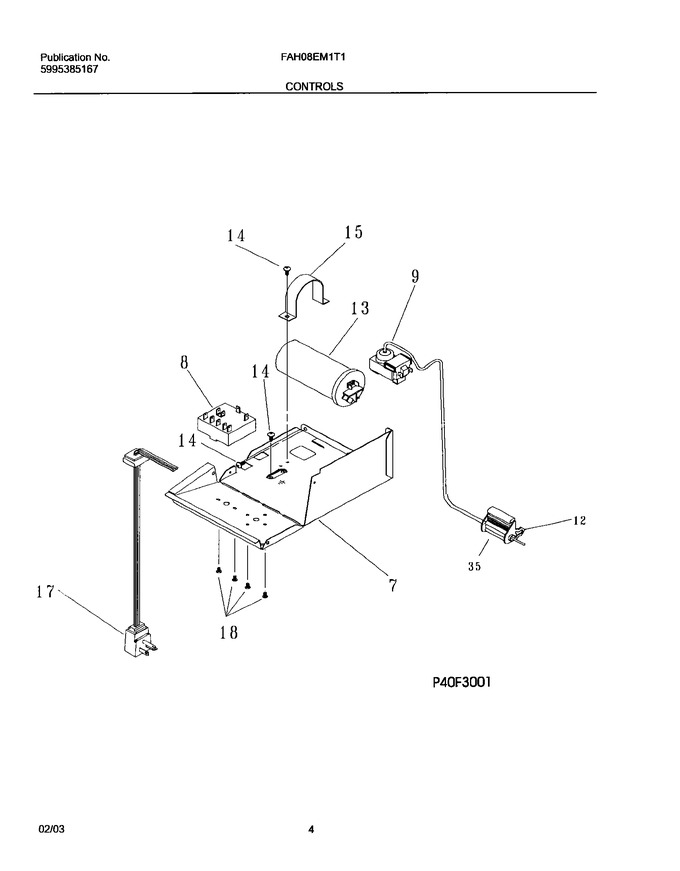

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304409496		Control,temperature		Appelez-nous	-
12	309329801		Clip,sensor Retainer ,3/8 Inch		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
15	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer,control Bulb ,rubber		Appelez-nous	-
F13	5304426336		Capacitor,250 V ,35+10 Mfd		Appelez-nous	-
F17	309343104		Cord-electric Power,14 Awg ,115 V		Appelez-nous	-
F7	309628502		Control Box		Appelez-nous	-
F8	309329304		Switch,heat ,0.75`` Shaft ,3 Speed		Appelez-nous	-
NI	5304418395		Wiring Harness,control Box ,14 Awg		Appelez-nous	-
