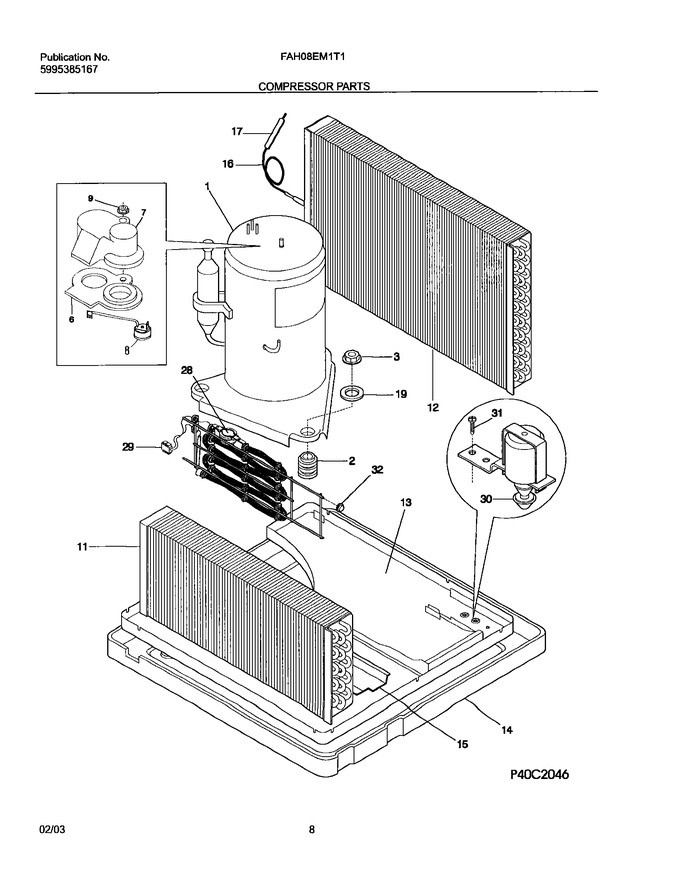

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	3201668		Gasket - Terminal Cover		Appelez-nous	-
7	5304405245		Cover,compr Terminal		Appelez-nous	-
9	3201670		Nut,terminal Cover		Appelez-nous	-
13	309628704		Tray,evap Base		Appelez-nous	-
14	309632006		Base,compressor Mt. ,with Studs		Appelez-nous	-
15	309629502		Shield,heat ,20.94 L		Appelez-nous	-
19	309112501		Washer,metallic		Appelez-nous	-
31	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
32	3018695		Nut,heater Assy ,self-threading		Appelez-nous	-
F1	309616919		Compressor				$ 441.84
F11	309632303		Evaporator		Appelez-nous	-
F12	309641901		Condenser		Appelez-nous	-
F16	3019025		Tube,capillary ,.10 X .05 X 40		Appelez-nous	-
F17	5300265301		Drier-filter,service Kit				$ 284.30
F28	309627004		Heater,1250 W ,115 V		Appelez-nous	-
F29	5304409500		Wiring Harness,heater ,14 Awg		Appelez-nous	-
F30	309363601		Valve-water,drain		Appelez-nous	-
F8	5303317553		Overload Protector		Appelez-nous	-
