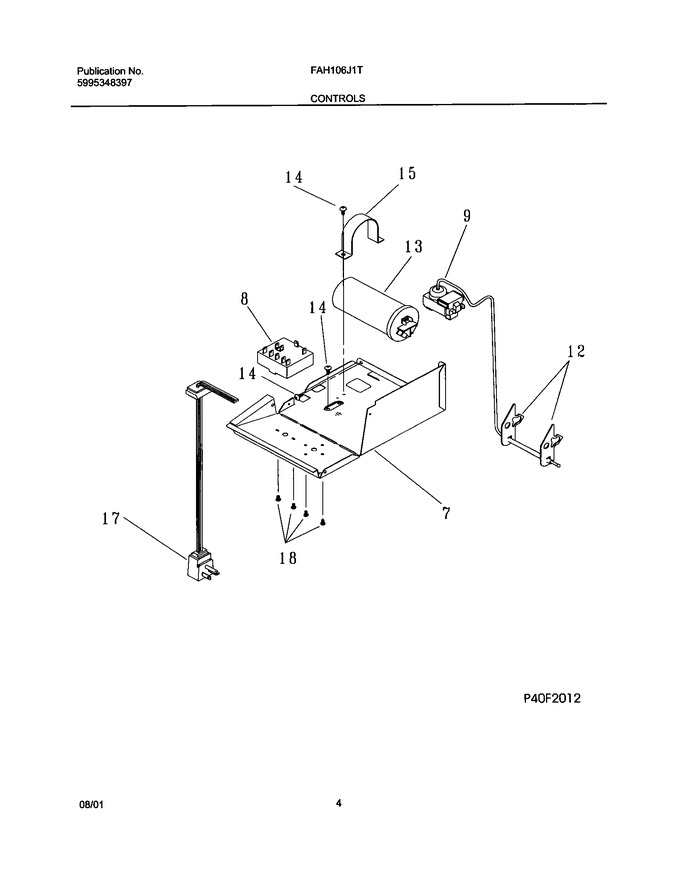

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304408746		Control-temperature,12amp				$ 151.25
12	309329801		Clip-sensor Bulb		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343108		Cord-service,type A ,115v/16ga		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
F13	5303318963		Capacitor,370 V		Appelez-nous	-
F7	309628501		Box-control		Appelez-nous	-
F8	5304408739		Switch,ge 3sp L				$ 155.51
NI	309111201		Grommet,wire Protector		Appelez-nous	-
