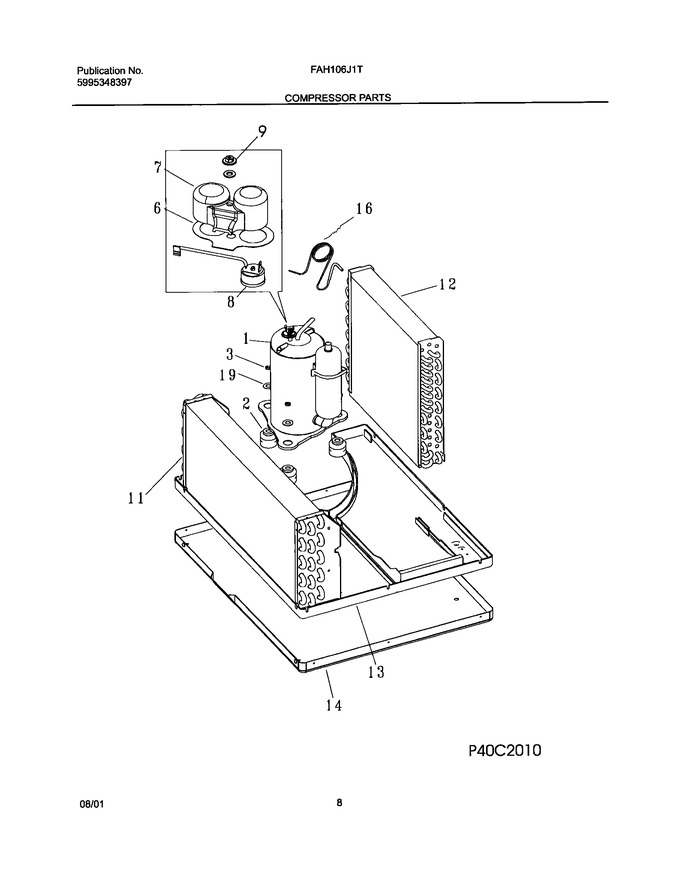

09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 13 | 309628705 | Tray-base |
|
- | |||||
| 14 | 309632005 | Base/compr,stakd Stud Assy |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 5304419112 | Compressor-sanyo,806-014-42 |
|
$ 319.46 | |||||
| F11 | 309632307 | Evap-assy,2rw/17fpi |
|
- | |||||
| F12 | 309632501 | Condenser-assy |
|
- | |||||
| F16 | 5303289577 | Capillary Tube,40 Inch Long ,cut-to-length |
|
- | |||||
| F8 | 5303295567 | Overload Protector |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
