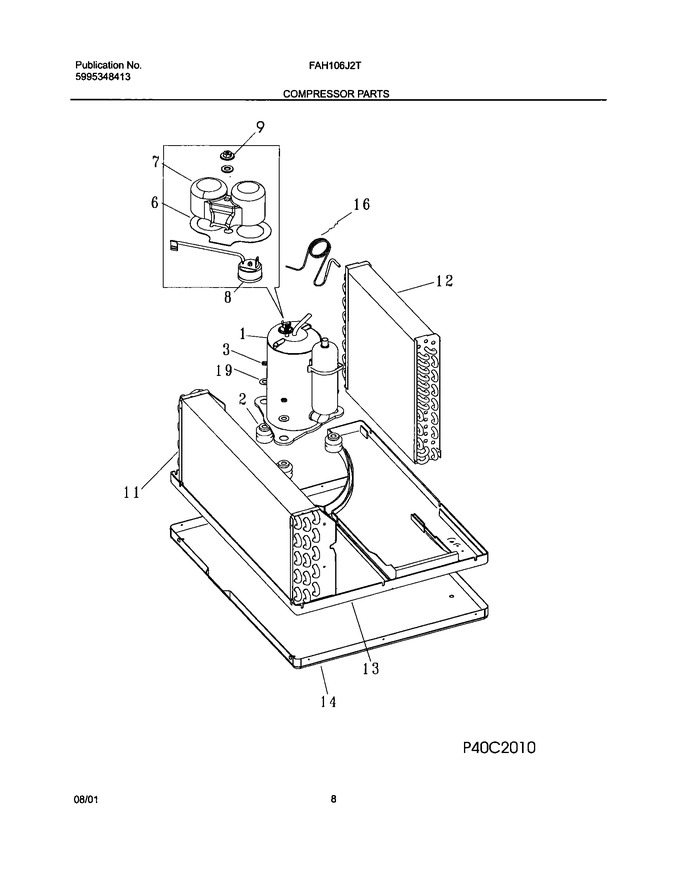

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303291330 | Gasket-cover |
|
- | |||||
| 7 | 5304416126 | Cover-terminal |
|
- | |||||
| 9 | 5303294292 | Nut-cover |
|
- | |||||
| 13 | 309628705 | Tray-base |
|
- | |||||
| 14 | 309632003 | Base/stud Assy |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 309603108 | Compressor-goldstar,gk147kaa |
|
- | |||||
| F11 | 309632307 | Evap-assy,2rw/17fpi |
|
- | |||||
| F12 | 309632501 | Condenser-assy |
|
- | |||||
| F16 | 5308017120 | Capillary Tube,45 Inch Long ,cut To Length |
|
- | |||||
| F8 | 5304419130 | Overload-,mra 98996-694 |
|
- | |||||
| NI | 5303293809 | Washer |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
