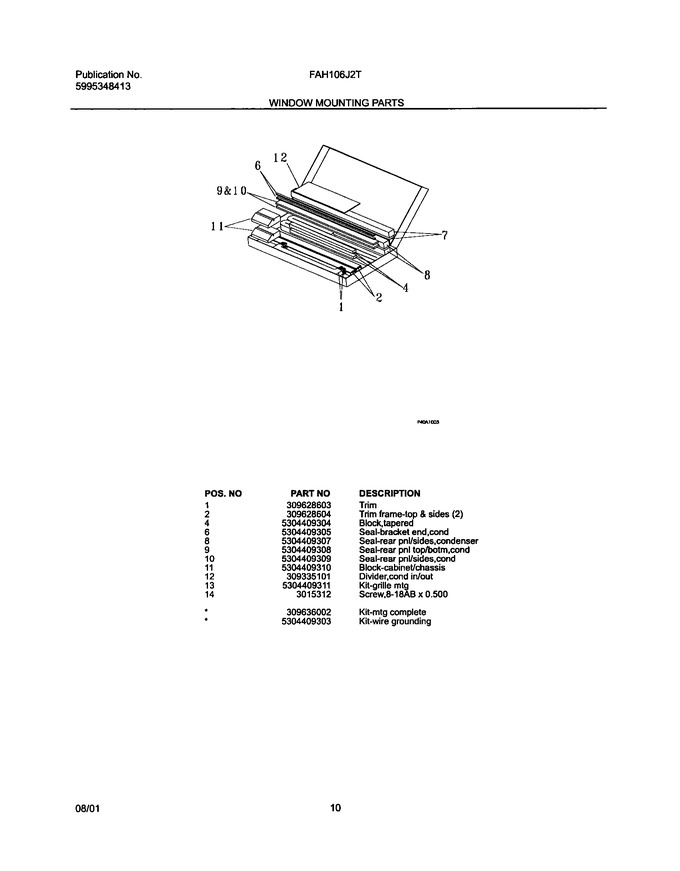

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309628603 | Trim |
|
- | |||||
| 2 | 309628604 | Trim Frame-top & Sides (2) |
|
$ 15.07 | |||||
| 3 | 5304409303 | Kit-wire Grounding |
|
- | |||||
| 4 | 5304409304 | Block,tapered |
|
- | |||||
| 5 | 5303301038 | Seal-wrapper |
|
- | |||||
| 6 | 5304409305 | Seal-bracket End,cond |
|
- | |||||
| 7 | 5304409306 | Seal-rear Panel,condenser |
|
- | |||||
| 8 | 5304409307 | Seal-rear Pnl/sides,condenser |
|
- | |||||
| 9 | 5304409308 | Seal-rear Pnl Top/botm,cond |
|
- | |||||
| 10 | 5304409309 | Seal-rear Pnl/sides,cond |
|
- | |||||
| 11 | 5304409310 | Block-cabinet/chassis |
|
- | |||||
| 12 | 309335101 | Divider,cond In/out |
|
- | |||||
| 13 | 5304409311 | Kit-grille Mtg |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 309636002 | Kit-mtg Complete |
|
- |
