SELECT A DIAGRAM

01 - Cover


03 - Cabinet Front And Wrapper

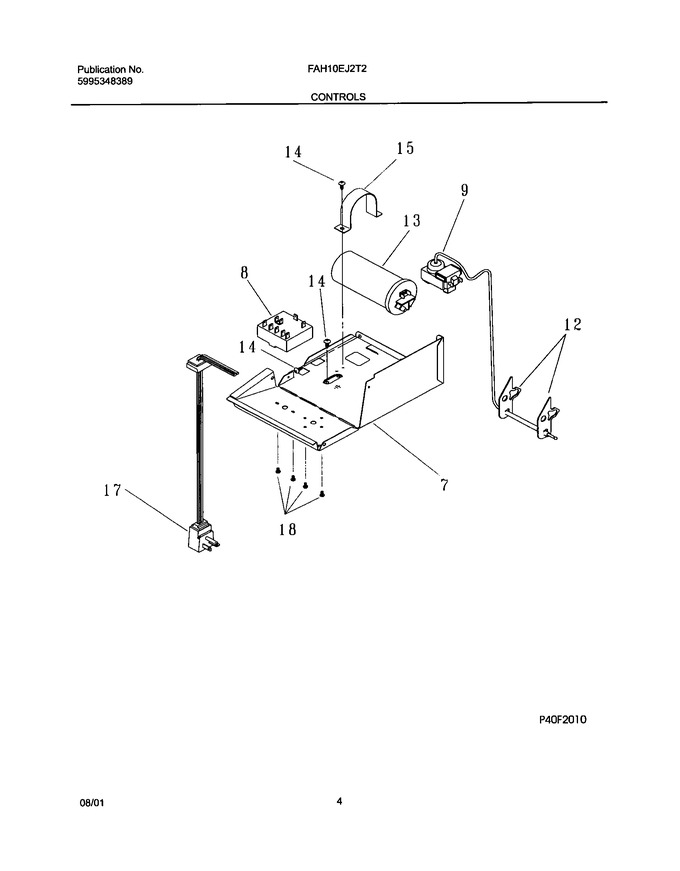

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304409496		Control-temp		Appelez-nous	-
12	309329801		Clip-sensor Bulb		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
F13	5303316710		Capacitor,370 V ,25+6 Mfd		Appelez-nous	-
F17	309343107		Cord-service,type-d ,12awg		Appelez-nous	-
F7	309628502		Box-control		Appelez-nous	-
F8	309329301		Switch-elect Ht,2sp .75``shaft		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
