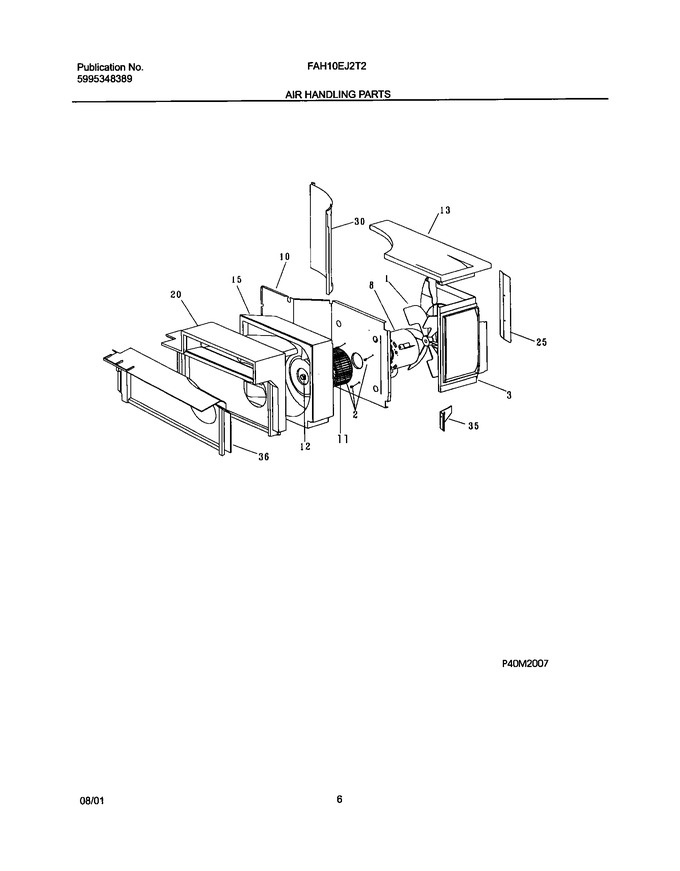

07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309628901		Shroud-condenser		Appelez-nous	-
5	3202951		Seal-fan Housing,bottom		Appelez-nous	-
10	309627401		Bulkhead		Appelez-nous	-
12	309112101		Clamp-blower		Appelez-nous	-
12	5303012110		Clamp-blower				$ 8.14
13	309628802		Top-cover		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309622802		Scroll		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	309625501		Scroll Plate		Appelez-nous	-
25	309335201		Baffle-air		Appelez-nous	-
30	309629001		Partition,shroud,galv-steel		Appelez-nous	-
35	309335001		Baffle-splash/motor		Appelez-nous	-
36	309629502		Heat Sheild,20.94l		Appelez-nous	-
F1	309629102		Blade-fan Ass`y		Appelez-nous	-
F11	309631701		Blower Wheel				$ 19.90
F8	5304409512		Motor-fan,ge 2sp W/lds		Appelez-nous	-
