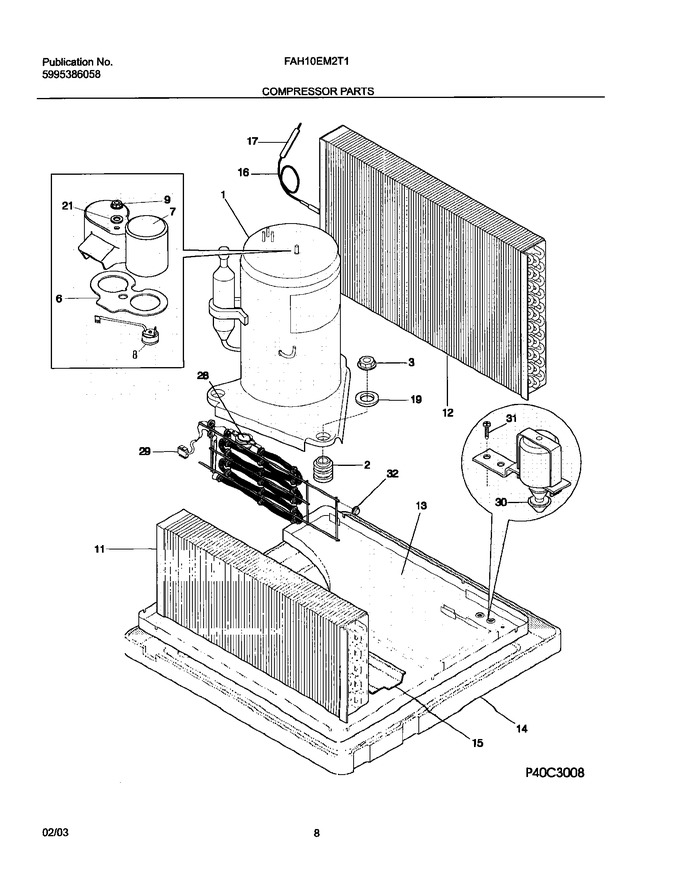

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket,terminal Cover		Appelez-nous	-
7	5304416126		Cover,elec Terminal ,compressor		Appelez-nous	-
9	5303294292		Nut-terminal Cover		Appelez-nous	-
13	309628704		Tray,evap Base		Appelez-nous	-
14	309632006		Base,compressor Mt. ,with Studs		Appelez-nous	-
15	309629502		Shield,heat ,20.94 L		Appelez-nous	-
19	309112501		Washer,metallic		Appelez-nous	-
21	5303293809		Washer,terminal Cover		Appelez-nous	-
31	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
32	3018695		Nut,heater Assy ,self-threading		Appelez-nous	-
F1	309603119		Compressor		Appelez-nous	-
F11	309632307		Evaporator		Appelez-nous	-
F12	309632507		Condenser		Appelez-nous	-
F16	5304417693		Tube,capillary ,37 Inch Long ,cut To Length		Appelez-nous	-
F17	5300265301		Drier-filter,service Kit				$ 284.30
F28	309627002		Heater Assy,230v/3450w		Appelez-nous	-
F29	5304409501		Wiring Harness,heater		Appelez-nous	-
F30	309363601		Valve-water,drain		Appelez-nous	-
F8	5304430632		Overload Protector		Appelez-nous	-
