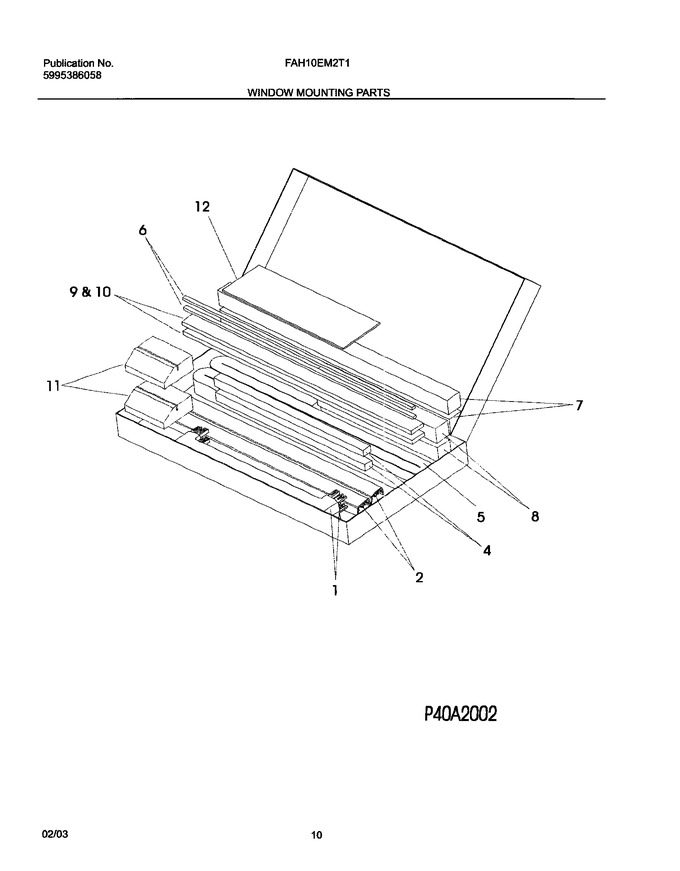

11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309628603		Trim,frame ,side		Appelez-nous	-
2	309628604		Trim,frame ,top & Bottom				$ 15.07
4	5304409304		Block,tapered		Appelez-nous	-
5	5303301038		Seal,stuffer ,wrapper		Appelez-nous	-
6	5304409305		Seal,cond. End Brkt ,rear Panel		Appelez-nous	-
7	5304409306		Seal,condenser ,26.5 X 1.5 X1.5 ,rear Panel		Appelez-nous	-
8	5304409307		Seal,condenser ,14 X 1.5 X 1.5 ,rear Panel/side		Appelez-nous	-
9	5304409308		Seal,condenser ,26.5 X 1.5 X.38 ,rear Panel,top & Bottom		Appelez-nous	-
10	5304409309		Seal,condenser ,14 X 1.5 X 0.38 ,rear Panel/side		Appelez-nous	-
11	5304409310		Block-chassis/cabinet		Appelez-nous	-
12	309335101		Divider,14 X 4.5 X .12 ,plastic ,gray/black,cond In/out ,corrugated		Appelez-nous	-
NI	309636002		Mounting Kit,complete		Appelez-nous	-
NI	5304409303		Grounding Kit		Appelez-nous	-
NI	5304409311		Grille Mtg. Kit		Appelez-nous	-
