SELECT A DIAGRAM

01 - Cover Sheet

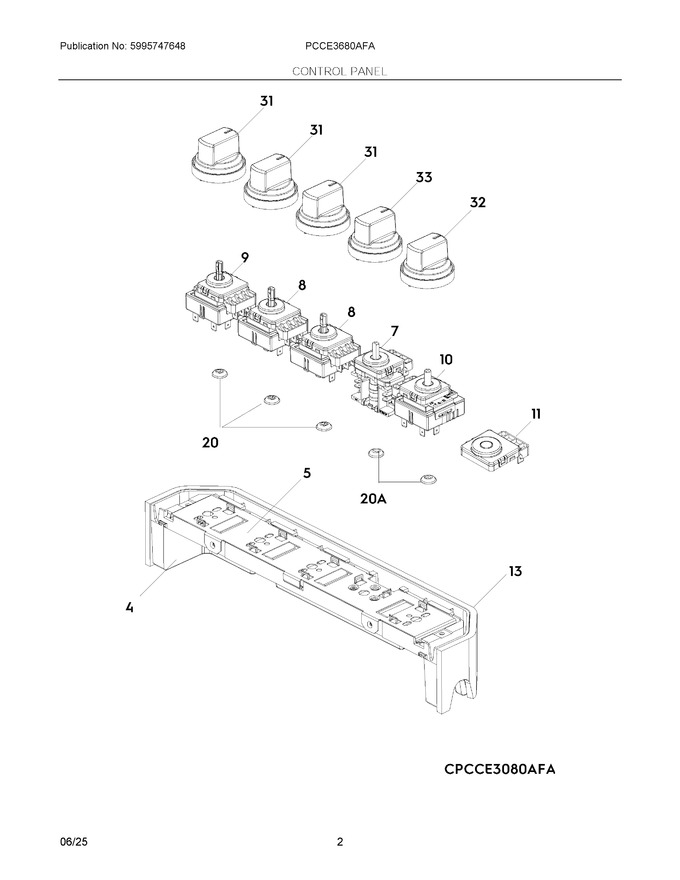

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304537482		Support, Switch		Appelez-nous	-
5	5304537483		Bracket, Switch Support		Appelez-nous	-
7	342149302		Switch, 1+0				$ 29.58
8	5304526190		Switch, Surface Heating, Single			Immediately	$ 90.50
9	5304527965		Switch, Surface Heating, Dual			Immediately	$ 100.56
10	5304534153		Switch, Surface Heating, Turbo Boil			Immediately	$ 84.53
11	5304537484		Lamp, Backlit		Appelez-nous	-
13	5304518265		Insulation, Control Box		Appelez-nous	-
20	5304537485		Spacer, Seal Socket		Appelez-nous	-
31	5304537489		Knob, Single				$ 77.70
32	5304537490		Knob, Turbo Boil		Appelez-nous	-
33	5304537491		Knob, Warmer		Appelez-nous	-
20A	5304537486		Spacer, Seal Socket		Appelez-nous	-
NI	305309608		Screw, M4		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	202855101		Holder, Cable				$ 1.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	5304536454		Screw, Switch Mtg., M4 X 7				$ 2.98
