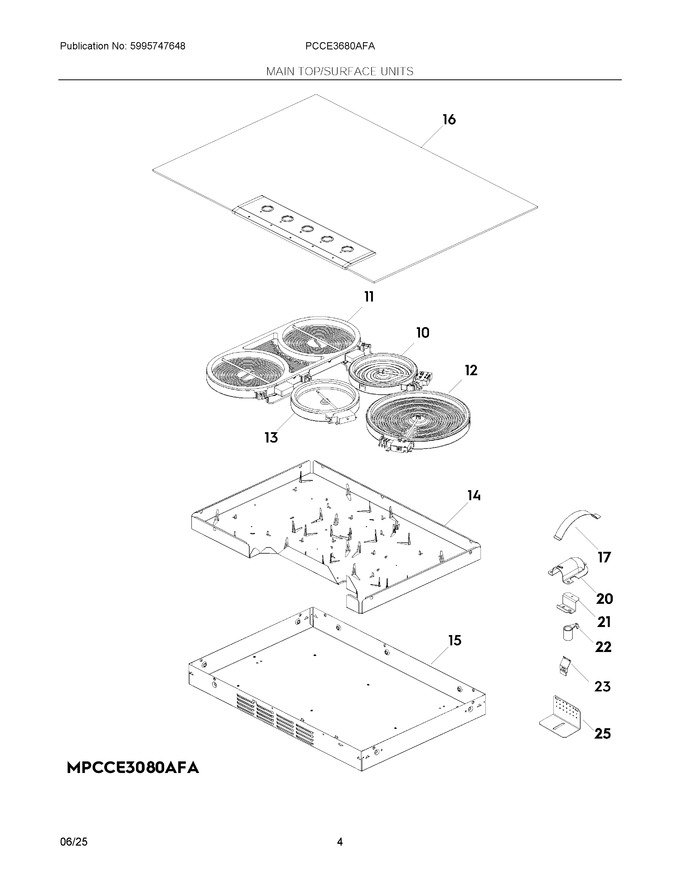

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	305440414		Element, Warm Zone, 6", 100w				$ 196.52
11	318258201		Element, Bridge, 1800/2600   (Replaces: 318178200)			Immediately	$ 480.54
12	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 216.16
13	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
14	5304537493		36" Radiant Carrier		Appelez-nous	-
15	5304537492		Burner Box 36		Appelez-nous	-
16	140262906153		Maintop, Assembly, Glass, Black   (Replaces: 5304537494)				$ 742.30
17	387372900		Spring, Surface Element				$ 15.17
20	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
21	5304518258		Bracket, Support, Z Style		Appelez-nous	-
22	5304534149		Bracket, Support, Plastic		Appelez-nous	-
23	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
25	387627700		Bracket, Retainer, Cooktop				$ 24.10
NI	202855101		Holder, Cable				$ 1.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	305309608		Screw, M4		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	5304537480		Bx Cable, Elements		Appelez-nous	-
NI	5304537487		Harness, Wiring, Main		Appelez-nous	-
