SELECT A DIAGRAM

01 - Cover Sheet

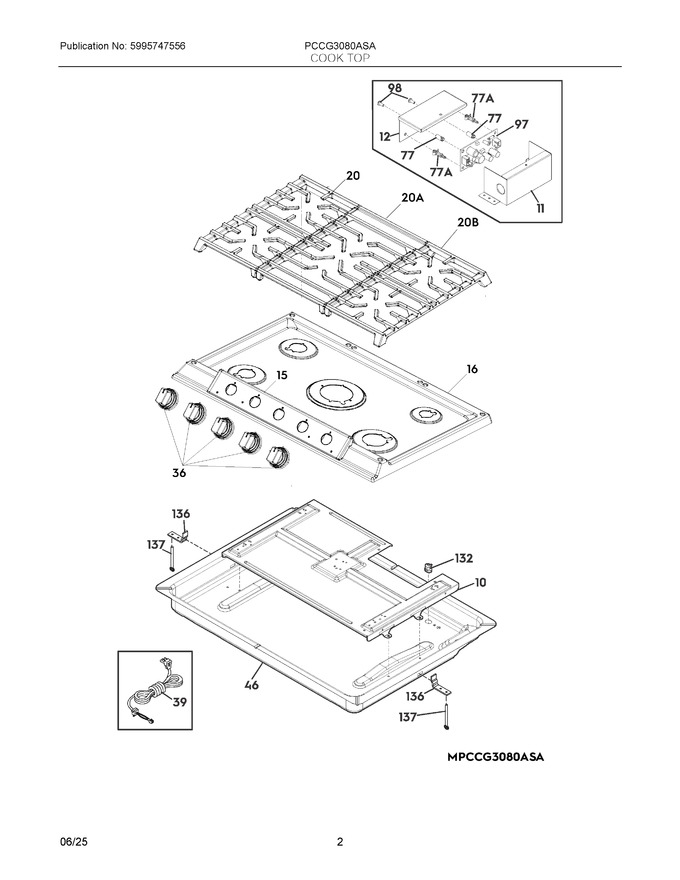

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304535451		Shield, Main Heat		Appelez-nous	-
11	5304527655		Shield, Heat, Smps Board		Appelez-nous	-
12	5304527656		Cover, Smps Board				$ 90.25
15	5304537509		Control Panel, Assembly, Stainless		Appelez-nous	-
16	5304537508		Maintop, Assembly, Stainless			Immediately	$ 246.32
20	5304537512		Grate, Top Burner, Lh				$ 147.84
36	5304537511		Knob, Assembly, Cooktop				$ 80.22
39	5304535446		Power Cord, Electrical, Supply		Appelez-nous	-
46	140170621068		Burner Box   (Replaces: 5304537495)		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
97	5304527657		Pc Board, Smps, Backlit Knobs		Appelez-nous	-
98	305309608		Screw, M4		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	5304537514		Grate, Top Burner, Center		Appelez-nous	-
20B	5304537513		Grate, Top Burner, Rh				$ 147.84
77A	316114100		Spacer				$ 60.96
NI	305338602		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
