01 - Cover Sheet
02 - Cook Top

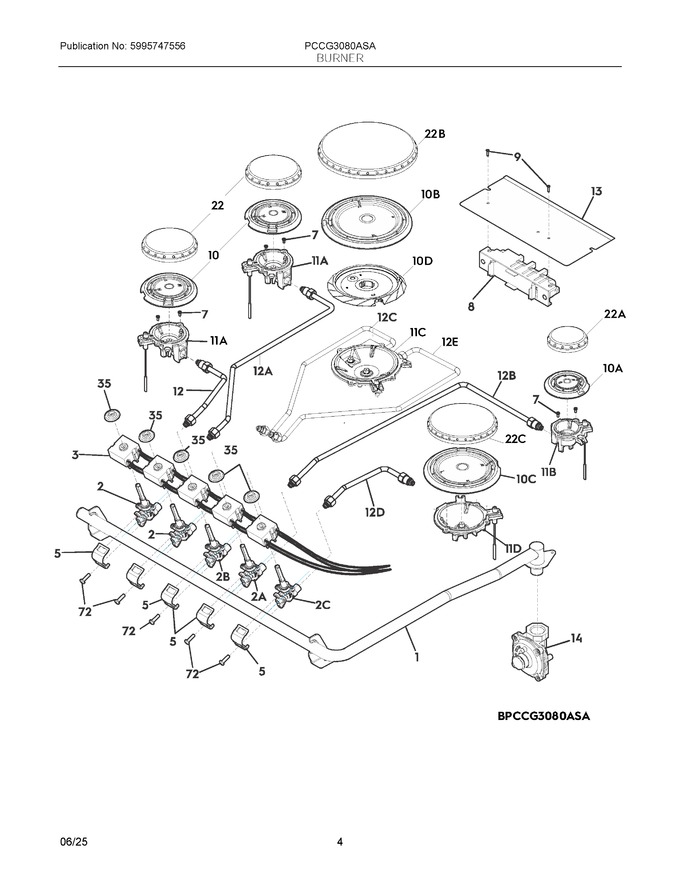

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537496 | Manifold, Pipe |
|
- | |||||
| 2 | 5304505691 | Valve, Saddle, 1125 Btu, Blue Stem |
|
Immediately | $ 69.01 | ||||
| 3 | 5304533642 | Switch Harness, Assembly, Ignitor |
|
$ 149.90 | |||||
| 5 | 357733403 | Bracket, Valve Fixing |
|
- | |||||
| 7 | 354324503 | Screw, Burner, Stainless |
|
- | |||||
| 8 | 5304537114 | Spark Module, 5 Outputs |
|
Immediately | $ 47.88 | ||||
| 9 | 305338602 | Screw |
|
- | |||||
| 10 | 5304537945 | Crown, Burner, Medium (Replaces: 5304533593) |
|
$ 11.17 | |||||
| 12 | 5304537504 | Tube, Front Left |
|
- | |||||
| 13 | 5304527658 | Cover, Spark Module |
|
- | |||||
| 14 | 5304533599 | Regulator, Gas Control |
|
Immediately | $ 96.11 | ||||
| 22 | 5304533596 | Cap, Burner, Medium |
|
Immediately | $ 32.66 | ||||
| 35 | 5304527661 | Gasket, Backlit Knob |
|
- | |||||
| 72 | 5304508436 | Screw, Saddle Valve, M4 |
|
- | |||||
| 10A | 5304537944 | Crown, Burner, Small (Replaces: 5304533592) |
|
Immediately | $ 8.56 | ||||
| 10B | 5304537510 | Crown, Bottom, 18k, Burner |
|
Immediately | $ 171.56 | ||||
| 10C | 5304537947 | Crown, Burner, Large (Replaces: 5304533618) |
|
$ 16.07 | |||||
| 10D | 140202433011 | Crown, Top, Burner, Xl |
|
Immediately | $ 158.99 | ||||
| 11A | 5304533584 | Ignitor/orifice, Assembly, 9.5k Btu, Lh Rear |
|
- | |||||
| 11B | 5304533582 | Ignitor/orifice, Assembly, 5k Btu, Rh Rear |
|
Immediately | $ 35.14 | ||||
| 11C | 5304537500 | Orifice/ignitor, 18k, Holder |
|
Immediately | $ 114.54 | ||||
| 11D | 5304537499 | Orifice/ignitqor, 11k, Holder |
|
- | |||||
| 12A | 5304537506 | Tube, Rear Left |
|
- | |||||
| 12B | 5304537507 | Tube, Rear Right |
|
- | |||||
| 12C | 5304537502 | Tube, Center Left |
|
- | |||||
| 12D | 5304537505 | Tube, Front Right |
|
- | |||||
| 12E | 5304537503 | Tube, Center Right |
|
- | |||||
| 22A | 5304533595 | Cap, Burner, Small |
|
Immediately | $ 28.92 | ||||
| 22B | 5304533597 | Cap, Burner, Xtra Large |
|
Immediately | $ 46.36 | ||||
| 22C | 5304533619 | Cap, Burner, Large |
|
$ 40.34 | |||||
| 2A | 5304505693 | Valve, Saddle, 680 Btu, Orange Stem |
|
$ 80.85 | |||||
| 2B | 5304536249 | Gas Valve, Dual Enterprise, Burner |
|
- | |||||
| 2C | 5304537497 | Valve, Saddle, 1500btu |
|
- | |||||
| NI | 5304533635 | Lp Conversion, Kit |
|
Immediately | $ 65.38 | ||||
| NI | 5304537498 | Bracket, Heat Shield |
|
- | |||||
| NI | A21779501 | Gasket, Valve Stem |
|
- | |||||
| NI | 5304537501 | Screw, T20, Trilobe, Burner |
|
- | |||||
| NIA | 5304519944 | Cap, Regulator, Red |
|
- |
