SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram

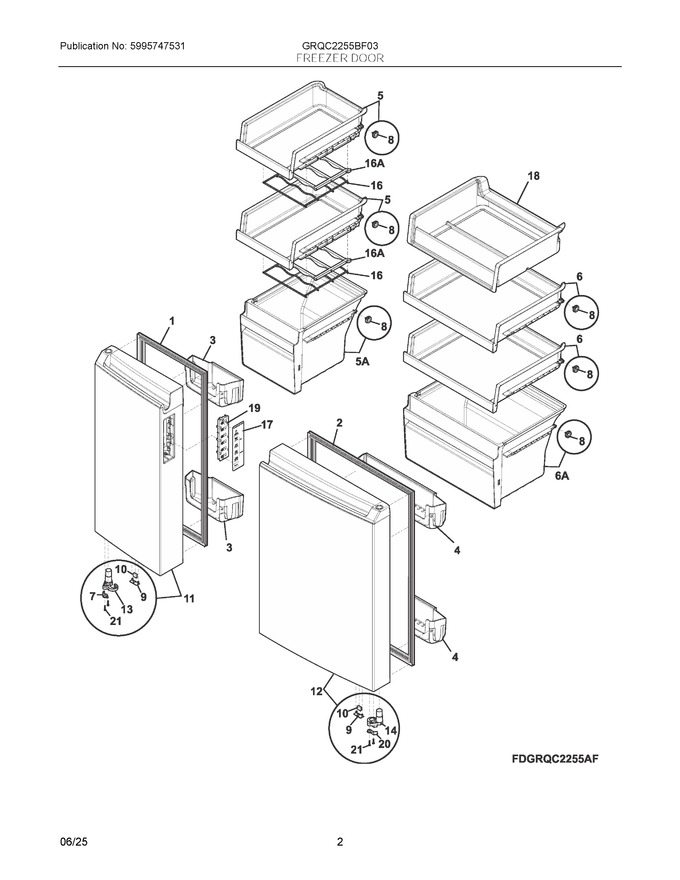

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527968		Gasket, Door, Lh, Freezer		Appelez-nous	-
2	5304527967		Gasket, Door, Rh, Freezer		Appelez-nous	-
3	5304538729		Bin, Fixed, Lh Door, Freezer		Appelez-nous	-
4	5304538728		Bin, Fixed, Rh Door, Freezer		Appelez-nous	-
5	5304533514		Drawer Assembly, Freezer, Lh Top		Appelez-nous	-
6	5304533515		Drawer Assembly, Freezer, Rh Top		Appelez-nous	-
7	5304527421		Stop, Frzr Door, Lh Bottom		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 16.84
9	5304526830		Cover, Sensor Magnet		Appelez-nous	-
10	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
11	140235214636		Door Assembly, Outer, Stainless, Lh, Freezer				$ 312.40
12	5304536922		Door Assembly, Outer, Stainless, Rh, Freezer				$ 292.69
13	5304526833		Bearing, Auto Closer, Lh		Appelez-nous	-
14	5304526829		Bearing, Auto Closer, Rh				$ 12.13
16	5304526854		Rack Assembly, Bottle, Wire		Appelez-nous	-
17	5304529279		Overlay, User Interface, Freezer				$ 58.80
18	140163962032		Container, Ice, Freezer   (Replaces: 5304526856)		Appelez-nous	-
19	5304531769		Pc Board, Display, Lh Door			Immediately	$ 80.23
20	5304527420		Stop, Frzr Door, Rh Bottom		Appelez-nous	-
21	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
16A	5304526855		Mat, Wine Rack		Appelez-nous	-
5A	5304526857		Drawer Assembly, Freezer, Lh Bottom		Appelez-nous	-
6A	5304526859		Drawer Assembly, Freezer, Rh Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
