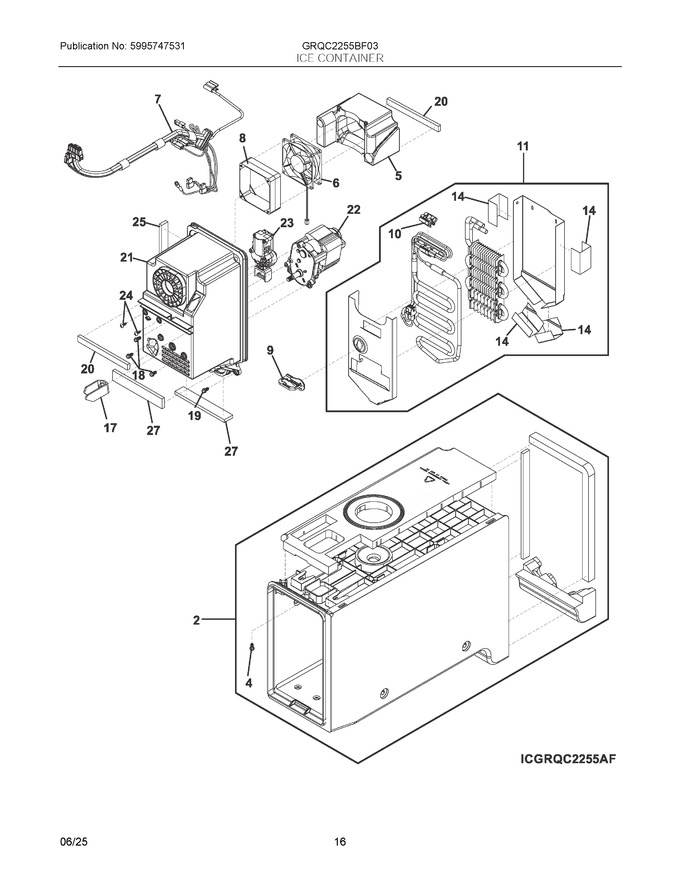

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303918901 | Housing Assembly, Ice Maker, W/gaskets (Replaces: 5304530081) |
|
Immediately | $ 147.11 | ||||
| 4 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 5 | 5304523073 | Duct, Ice Maker Fan |
|
Immediately | $ 40.29 | ||||
| 6 | 5304524796 | Fan Assembly, Motor, With Blade (Replaces: 242119403) |
|
Immediately | $ 176.35 | ||||
| 7 | 5304526820 | Harness, Wiring, Air Handler, W/defrost Therm |
|
$ 121.19 | |||||
| 8 | 5304508063 | Grommet, Fan |
|
Immediately | $ 15.92 | ||||
| 9 | 5304508037 | Connector, Harness, Evap Cover |
|
$ 14.41 | |||||
| 10 | 5304519629 | Clip, Heater/tubing |
|
$ 8.34 | |||||
| 11 | 140068083116 | Evaporator Assembly, Ice Maker, Complete |
|
Immediately | $ 95.78 | ||||
| 14 | 5304485759 | Tape, 3" X 1", Foil |
|
$ 0.71 | |||||
| 17 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 18 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 19 | 519088008 | Screw, Vt Af/2p, 5 X 16 |
|
- | |||||
| 20 | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| 21 | 5304526818 | Housing, Air Handler |
|
- | |||||
| 22 | 5304519208 | Motor, Auger |
|
Immediately | $ 232.72 | ||||
| 23 | 140159718018 | Selector, Ice Crush/cube (Replaces: 5304526819) |
|
$ 38.84 | |||||
| 24 | 218359202 | Screw, Pan Head, 8-32 X 0.250 |
|
$ 10.63 | |||||
| 25 | 5304519209 | Gasket, Housing, 6.3w, Ice Maker |
|
$ 14.99 | |||||
| 27 | 5304519211 | Gasket, Air Handler, Front |
|
$ 9.45 | |||||
| 55 | 241690306 | Washer |
|
$ 49.62 |
