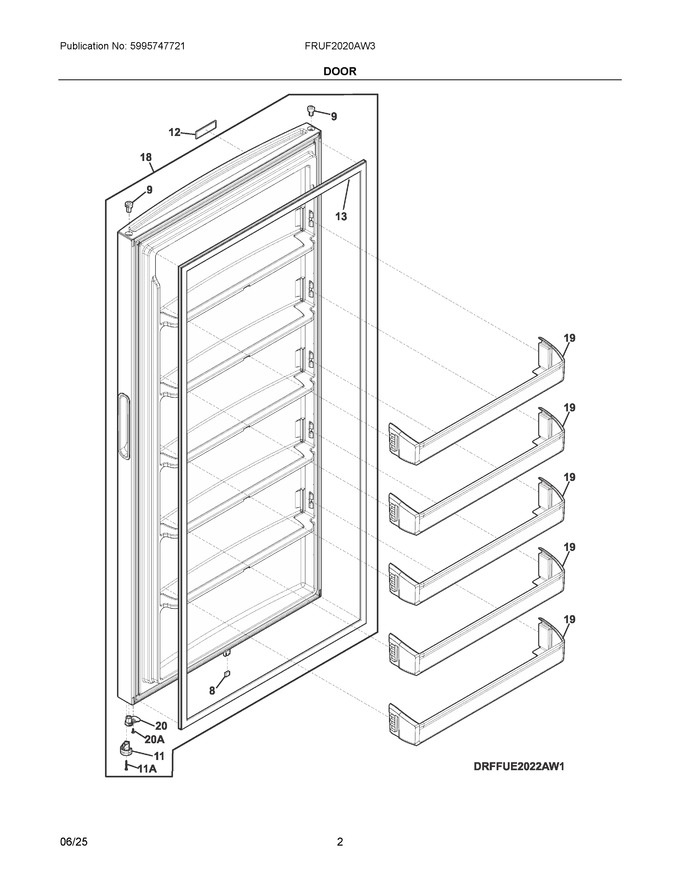

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 | ||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 7.30 | ||||
| 11 | 5304519789 | Hook, Door Closer, White |
|
Immediately | $ 4.55 | ||||
| 12 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 4.55 | ||||
| 13 | 140190906861 | Gasket, Door, Gray (Replaces: 5304524887) |
|
Immediately | $ 112.54 | ||||
| 18 | 5304529105 | Door Assembly, Freezer, White, W/gasket-hrdwre |
|
$ 404.55 | |||||
| 19 | 5304523719 | Shelf-door |
|
$ 59.09 | |||||
| 20 | 5304523784 | Bearing, Door, Lower |
|
$ 7.23 | |||||
| 11A | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 20A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 |
