SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

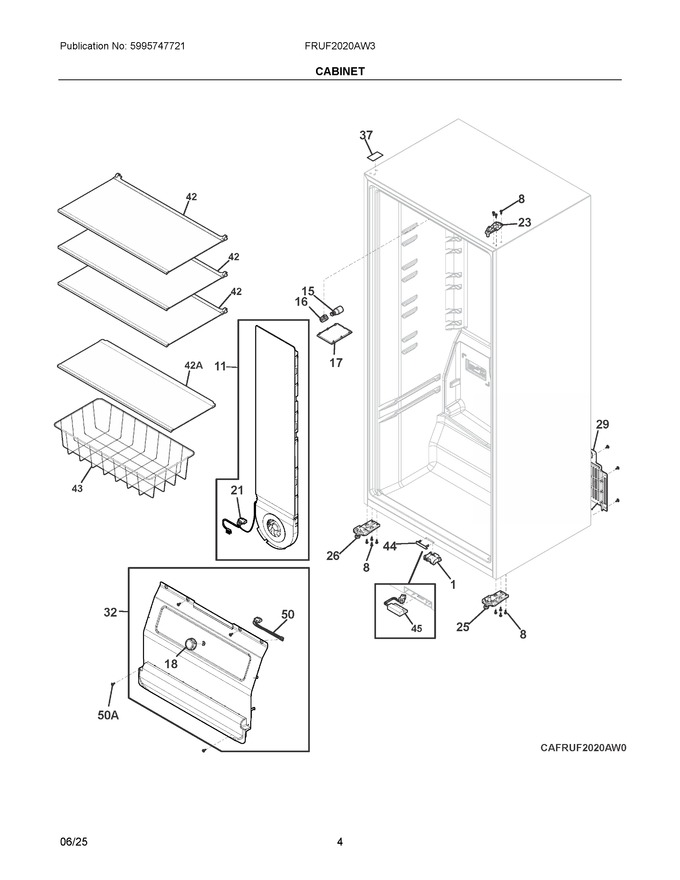

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523792		Cover, Housing, Reed Switch			Immediately	$ 7.96
7	5304525858		Cover, Access, Machine Compt.				$ 55.67
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
11	5303918891		Air Tower Assenmbly, Complete, W/motor-heater			Immediately	$ 121.98
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304530650		Socket, Light, Led			Immediately	$ 10.01
17	5304536791		Lens, Light		Appelez-nous	-
18	5304523758		Knob, Temp Control			Immediately	$ 7.96
21	5304523788		Harness Assembly, Temp/defrost, W/thermostats			Immediately	$ 38.56
23	5304537471		Hinge, Upper				$ 5.27
25	5304529045		Hinge-bottom, Assembly, Rh, W/foot-closer				$ 45.55
26	5304523747		Hinge-bottom, Assembly, Lh Non Hinged, W/foot				$ 41.21
32	5304532168		Cover Assembly, Evaporator, W/cold Control				$ 79.38
37	5304523313		Label, Blank, White, Hole Cover			Immediately	$ 3.55
42	5304536377		Shelf Assembly, 26.7", Glass			Immediately	$ 51.45
43	5304537472		Basket, Gray, Lower			Immediately	$ 36.47
44	5304524130		Cover, Reed Switch, Front				$ 10.63
45	5304523755		Reed Switch Harness, Assembly, W/led Light			Immediately	$ 75.19
50	5304523789		Harness, Potentionmeter			Immediately	$ 22.29
42A	5304536378		Shelf Assembly, 27.8", Glass				$ 38.90
50A	5304523738		Screw, Hex Wash Hd, M4.2 X 16				$ 6.51
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NIA	5304530289		Cover, Eps, Potentiometer		Appelez-nous	-
NIA	5303918733		Tape, Aluminum, 36mm   (Replaces: 5304522179)			Immediately	$ 4.26

    View Diagram in Separate Window       Print Part List
