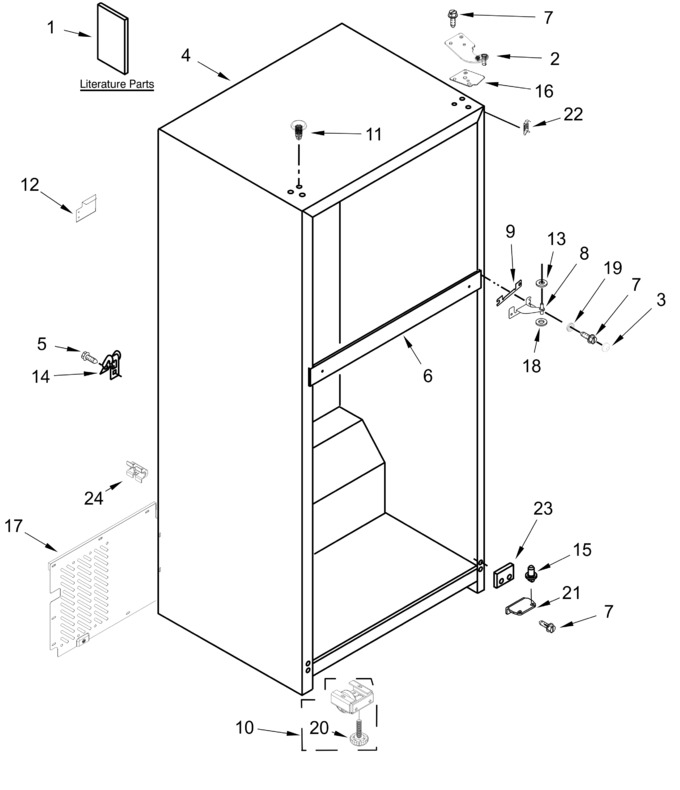

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11714879		Assembly, Top Right Hinge   (Replaces: W11656390)				$ 21.17
3	W10846529		Cap, Dome (white)   (Replaces: W10674771)			Immediately	$ 16.99
4	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
6	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2166037		Assembly, Hinge (center)   (Replaces: 2166086)				$ 70.34
9	2215385		Shim, Hinge Center (black)				$ 78.29
10	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 101.23
11	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 16.44
12	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 9.79
14	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 18.96
15	W11026307		Hinge Pin   (Replaces: W10638688)			Immediately	$ 66.52
16	W11714879		Shim, Top Hinge   (Replaces: W11656515)				$ 21.17
17	W11729399		Cover Unit   (Replaces: W11676551)		Appelez-nous	-
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 8.89
19	W10847959		Cap, Washer Dome   (Replaces: W10674773)				$ 9.66
20	WPW10133299		Leveler   (Replaces: W10133299)				$ 10.58
21	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 68.57
22	W11500943		Filler, Corner (black)   (Replaces: 2215384)				$ 6.84
23	WP2201567		Shim, Hinge (bottom)   (Replaces: 2201567)				$ 6.99
24	W11416450		Spacer, Back		Appelez-nous	-
	W11730698		Use & Care Guide		Appelez-nous	-
	W11647838		Energy Guide		Appelez-nous	-
