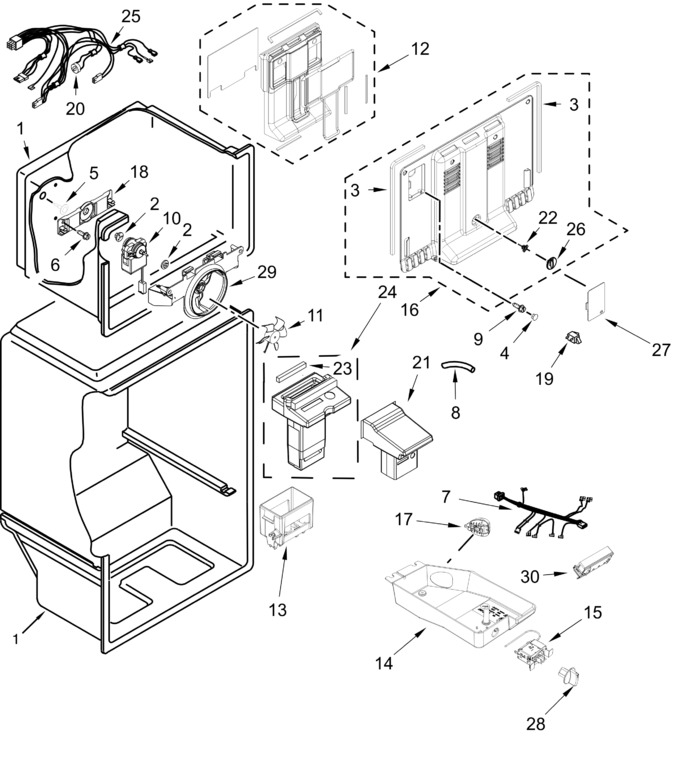

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARID4B24459AD3CE840514D8AC6D2EFEC61 | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | W10579698 | Gasket, Evaporator Cover |
|
$ 19.12 | |||||
| 4 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W11581753 | Wire Assembly, Control Box |
|
- | |||||
| 8 | WP2196003 | Tube, Thermostat Barrier (Replaces: 1118680) |
|
$ 7.16 | |||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W11666272 | Assembly, Evaporator Plenum (Replaces: W10813581) |
|
- | |||||
| 13 | W10570480 | Cover, Air Diffuser |
|
- | |||||
| 14 | W11669623 | Assembly, Control Box (Replaces: W10827112) |
|
- | |||||
| 15 | W11609823 | Assembly, Thermostat (Replaces: W11349827) |
|
Immediately | $ 33.95 | ||||
| 16 | W11634632 | Cover, Evaporator (Replaces: W11510100) |
|
$ 96.81 | |||||
| 17 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
Immediately | $ 38.37 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 21.20 | ||||
| 20 | ARI19ED5D80872328754654B700CD457BD5 | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | W11208347 | Duct, Air (Replaces: W10570941) |
|
$ 84.38 | |||||
| 22 | W10169456 | Baffle, Air Manual |
|
$ 186.81 | |||||
| 23 | W10702120 | Gasket, Air Diffuser |
|
- | |||||
| 24 | W11669620 | Assembly, Air Diffuser (Replaces: W11603929) |
|
- | |||||
| 25 | W11577969 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W11575934) |
|
Immediately | $ 69.97 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | W11341621 | Cover, Hole |
|
- | |||||
| 28 | W11678792 | Knob, Control (Replaces: W10840263) |
|
$ 32.95 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W11577965 | Control, Electronic (Replaces: W11438550) |
|
Immediately | $ 58.35 |
