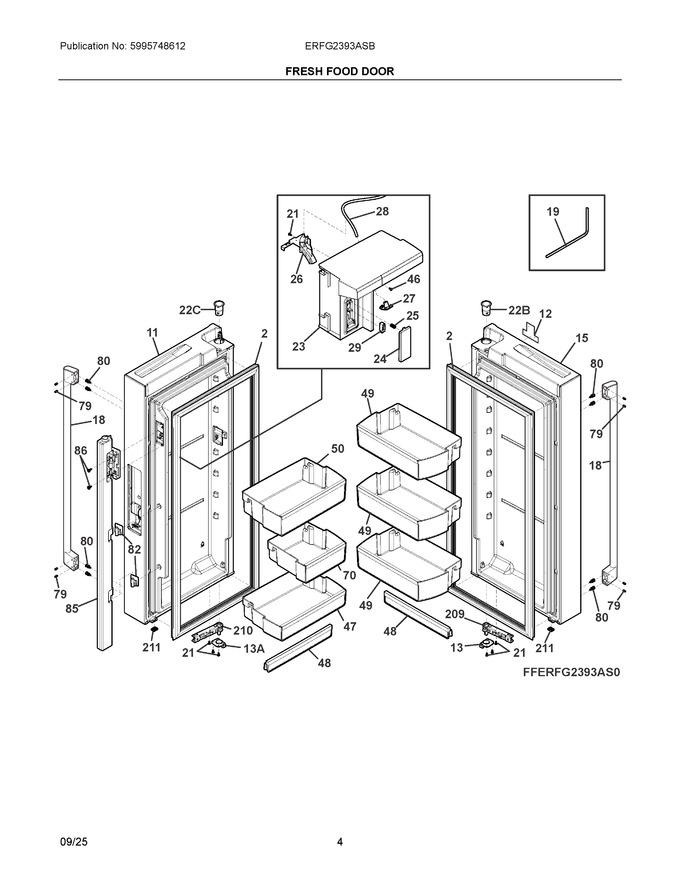

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket, Door, Gray, Fresh Food, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 11 | 5304532830 | Door Assembly, Fresh Food, Stainless, Lh |
|
Immediately | $ 313.34 | ||||
| 12 | 5304532471 | Label Assembly, Nameplate, Chrome, Electrolux (Replaces: 5304524867) |
|
$ 18.27 | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 5304532831 | Door Assembly, Fresh Food, Stainless, Rh |
|
Immediately | $ 270.04 | ||||
| 18 | 5304524807 | Handle Assembly, Stainless, W/set Screws |
|
Immediately | $ 182.18 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 23 | 5304532858 | Housing, Water Dispenser, Gray |
|
$ 168.16 | |||||
| 24 | 5304532826 | Button, Water Dispenser, Gray |
|
$ 10.97 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 26 | 5304531239 | Retainer, Water Tube |
|
Immediately | $ 13.81 | ||||
| 27 | 5304532859 | Nozzle, Water Dispenser, Gray |
|
$ 10.13 | |||||
| 28 | 218976449 | Hose Water Internal Disp, Bm, 28 |
|
Immediately | $ 20.14 | ||||
| 29 | 241870104 | Switch, Disp Paddle |
|
Immediately | $ 20.33 | ||||
| 46 | 240383414 | Screw, 19.1mm, Grey |
|
- | |||||
| 47 | 5304537222 | Door Bin, Standard, Lf Door |
|
Immediately | $ 57.26 | ||||
| 48 | 5304539201 | Door Lower Bin (strap) |
|
Immediately | $ 15.69 | ||||
| 49 | 5304536414 | Door Bin, Standard, Rh |
|
Immediately | $ 54.77 | ||||
| 50 | 5304537166 | Door Bin, Full Shelf, Lh Door |
|
- | |||||
| 70 | 5304537167 | Door Non-disp Dairy Bin |
|
- | |||||
| 79 | 218755410 | Screw-set, 10-32 X .354 In |
|
- | |||||
| 80 | 5304537280 | Screw Mount Handle Hydra |
|
- | |||||
| 82 | 241779402 | Hinge-mullion, Gray, Upper/lower, Flipper |
|
$ 17.64 | |||||
| 85 | 5304530856 | Mullion Assembly, Flipper, Gray, W/heater |
|
$ 150.21 | |||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 19.13 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 19.13 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 | |||||
| NIA | 5304531012 | Harness, Wiring, Water Dispenser |
|
Immediately | $ 40.29 | ||||
| NIB | 5304537169 | Harness Wiring, Door |
|
- |
