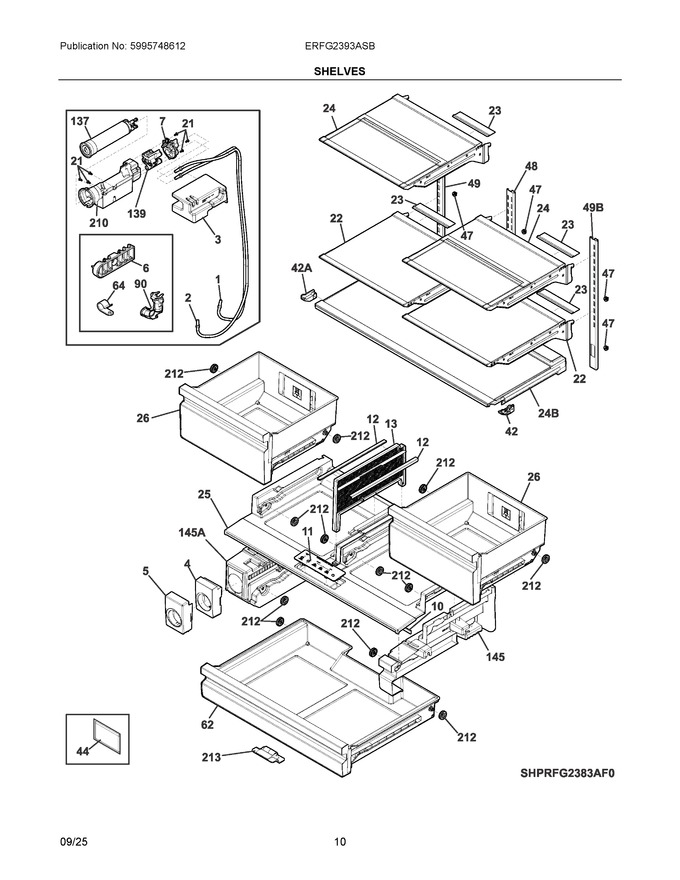

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220131		Tube, Water, 44.89", Brown, Valve, To Filter Inlet			Immediately	$ 15.32
2	242220132		Tube, Water, 47.24", Natural, Filter Outlet, To Valve			Immediately	$ 15.32
3	5304531114		Insulation, Water Line				$ 5.91
4	5304532902		Facia, Water Filter		Appelez-nous	-
5	5304532903		Cover, Filter Facia				$ 8.68
6	5304531203		Clamp, Water Tube				$ 4.71
7	5304531689		Support, Water Filter			Immediately	$ 11.13
10	241872205		Beam, Support, Deli		Appelez-nous	-
11	5304532851		User Interface, Assembly, Drawer, Temp Control			Immediately	$ 255.56
12	5304532933		Gasket, Center Support, Crisper				$ 7.09
13	5304532879		Support, Crispers, Center		Appelez-nous	-
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
22	5304532846		Shelf Assembly, Fixed, 1/2 Width, W/trim-glass		Appelez-nous	-
23	5304532845		Buffer, Shelf Air, Gray		Appelez-nous	-
24	5304532847		Shelf Assembly, Slide Under, 1/2 Width, W/trim-glass		Appelez-nous	-
25	5304532850		Cover Assembly, Deli Pan, W/glass-rollers			Immediately	$ 143.39
26	5304538878		Crisper Pan Assy - Cd		Appelez-nous	-
42	5304532906		Support, Crisper, Gray, Rh		Appelez-nous	-
44	ELPAPKRF		Elux Freshness Booster Refill				$ 14.89
47	242081301		Screw-shoulder		Appelez-nous	-
48	242122103		Channel, Shelf Mtg., Gray, Center		Appelez-nous	-
49	242122206		Channel, Shelf Mtg, Gray, Side, Lh		Appelez-nous	-
62	5304538883		Cd Deli Pan Assy				$ 119.29
64	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
90	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
137	EPPWFU01		Elect Purepour, Wf-1, Water Filter			Immediately	$ 128.71
145	5304532866		Support Assembly, Deli, Gray, Rh, W/roller		Appelez-nous	-
210	5304530987		Housing, Water Filter			Immediately	$ 11.57
212	5304508016		Roller, Crisper Pan			Immediately	$ 9.42
213	242010904		Roller Assy, Gray, Deli Pan		Appelez-nous	-
139A	140156010054		Manifold, Water Filter   (Replaces: 5304537198)				$ 30.57
145A	5304532877		Support, Deli, Gray, Lh				$ 161.28
24B	5304532878		Cover Assembly, Crispers, W/glass-gasket		Appelez-nous	-
42A	5304532905		Support, Crisper, Gray, Lh		Appelez-nous	-
49B	242122304		Channel, Shelf Mtg., Gray, Side, Rh		Appelez-nous	-
NI	5304531023		Harness, Wiring, Water Filter			Immediately	$ 28.16
NIA	5304534013		Frpapkrf Filter Cover				$ 12.31
NIA	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26
NIA	5304530898		Harness, Wiring, Drawer, Temp Control			Immediately	$ 165.33
NIA	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
