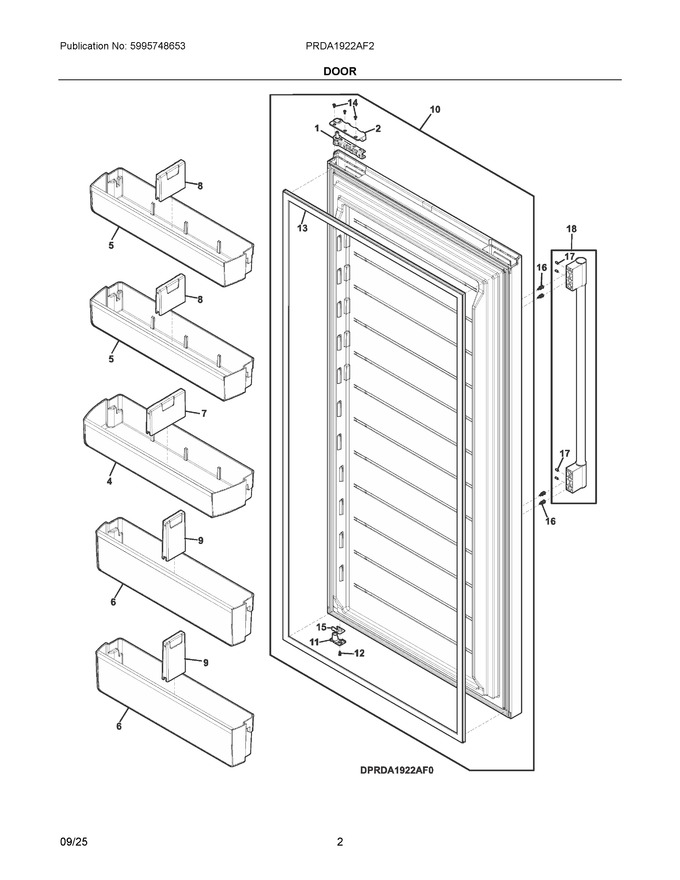

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524643		Closer Assembly, Door, Rh Upper			Immediately	$ 96.26
2	5304524623		Cover, Door Cap, Gray, Rh, Closer Side				$ 14.46
4	5304524631		Bin, Door, Galon   (Replaces: 5304529220)			Immediately	$ 149.27
5	5304529219		Bin, Door, 2 Liter			Immediately	$ 173.80
6	5304529221		Bin, Door, Tall Items			Immediately	$ 151.41
7	5304538167		Divider-bin Gallon				$ 19.55
8	5304538164		Divider-bin 2 Liter				$ 16.78
9	5304538168		Divider-bin Tall Item				$ 15.63
10	5304538165		Door Assembly, Complete, Stainless, Rh Swing				$ 749.23
11	5304524745		Bearing, Door, Lower			Immediately	$ 7.96
12	241953903		Screw, Door Stop, Lower				$ 5.07
13	140190906879		Gasket, Door, Grey   (Replaces: 5304524888)				$ 111.73
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
15	5304524767		Stop, Door, Lower Bearing			Immediately	$ 11.38
17	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
18	5304535090		S/a Pur-handle Verticle Pro		Appelez-nous	-
NIA	241601002		Wrench, Allen		Appelez-nous	-
