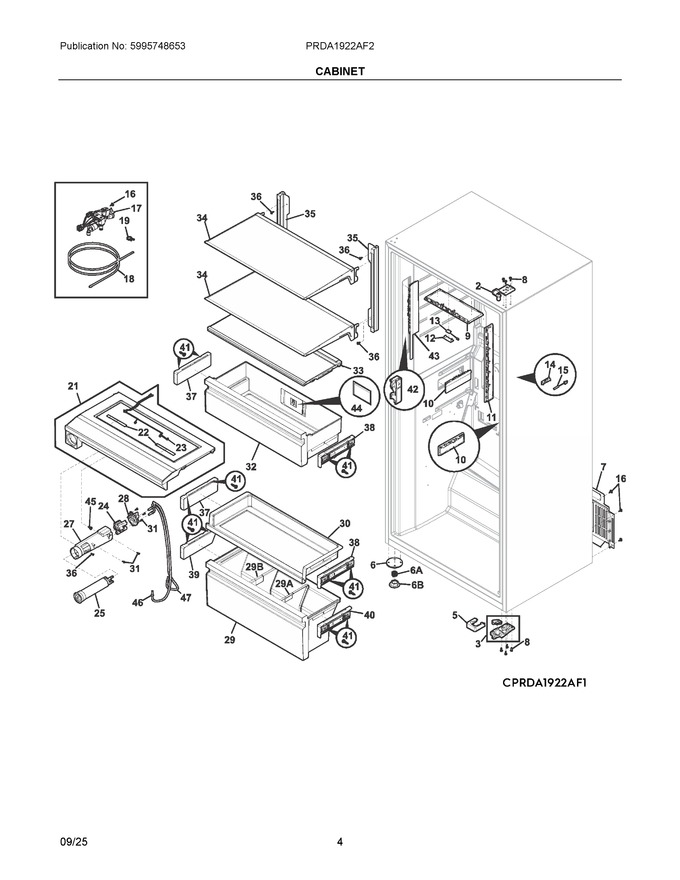

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304524636 | Hinge, Door, Rh Upper |
|
$ 242.59 | |||||
| 3 | 5304525238 | Hinge Assembly, Lower, Rh |
|
Immediately | $ 65.08 | ||||
| 5 | 5304525237 | Cover, Hinge, Rh Lower |
|
$ 11.17 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 15.51 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 140126313091 | Lens,lamp Assembly,double,led |
|
- | |||||
| 10 | 140126313034 | Lens,lamp Assembly,single, Led |
|
- | |||||
| 11 | 140126313125 | Lens,lamp Assembly,3x,led |
|
- | |||||
| 12 | 5304524762 | Cover, Reed Switch, Grey |
|
$ 9.68 | |||||
| 13 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.11 | |||||
| 14 | 5304524760 | Cover, Sensor, Grey |
|
$ 9.41 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 16 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| 17 | 5304524756 | Valve, Water, Triple Solenoid |
|
Immediately | $ 132.69 | ||||
| 18 | 5304528820 | Tube, Water, Dispenser |
|
Immediately | $ 47.50 | ||||
| 19 | 5304528819 | Clamp, Dispenser Tube, 7/16 |
|
$ 9.86 | |||||
| 21 | 140130183241 | Control Panel, Assembly, W/light Ui-pcb (Replaces: 5304538166) |
|
- | |||||
| 22 | 5304539141 | Polaris Led Cluster Pcba |
|
- | |||||
| 23 | 5304524766 | Harness, Jumper, Led |
|
$ 11.06 | |||||
| 24 | 140156010054 | Manifold, Water Filter (Replaces: 5304524817) |
|
$ 30.57 | |||||
| 25 | EPPWFU01 | Elect Purepour, Wf-1, Water Filter |
|
Immediately | $ 128.71 | ||||
| 27 | 5304524838 | Bracket, Water Filter |
|
Immediately | $ 21.23 | ||||
| 28 | 5304524840 | Support, Water Filter |
|
$ 13.01 | |||||
| 29 | 5304524710 | Drawer Assembly, Full Width, Lower, W/dividers |
|
$ 242.64 | |||||
| 30 | 5304524707 | Shelf Assembly, Slide Out, W/glass |
|
$ 182.76 | |||||
| 31 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 32 | 5304524701 | Drawer Assembly, Upper, W/trim |
|
$ 228.01 | |||||
| 33 | 5304528817 | Crisper Cover, Assembly, W/glass-gasket |
|
$ 173.40 | |||||
| 34 | 5304524670 | Shelf Assembly, Glass, W/trim |
|
$ 190.35 | |||||
| 35 | 140171013042 | Rail, Shelf, Support, Assembly |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 37 | 5304524854 | Slide Assembly, 9 Inch, Grey, Lh |
|
$ 80.25 | |||||
| 38 | 5304524853 | Slide Assembly, 9 Inch, Grey, Rh |
|
$ 83.86 | |||||
| 39 | 5304524856 | Slide Assembly, 8 Inch, Grey, Lh |
|
$ 80.25 | |||||
| 40 | 5304524855 | Slide Assembly, 8 Inch, Grey, Rh |
|
$ 76.63 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 2.89 | ||||
| 42 | 140129367060 | Dispenser-water (Replaces: 5304539739) |
|
- | |||||
| 43 | 5304540123 | Led 2x Strip W/dispenser |
|
- | |||||
| 44 | 5304524705 | Absorber, Ethylene |
|
- | |||||
| 45 | 5304525288 | Screw, Shoulder, M4.2 Hi-lo Qdrx |
|
$ 2.28 | |||||
| 46 | 5304539694 | Hose, Filter Outlet (Replaces: 242220129) |
|
Immediately | $ 12.90 | ||||
| 47 | 5304539695 | Hose, Filter Inlet (Replaces: 242220130) |
|
Immediately | $ 13.04 | ||||
| 29A | 140138033018 | Divider-lower Drawer Rh Tt |
|
- | |||||
| 29B | 140138033026 | Divider-lower Drawer Lh Tt |
|
- | |||||
| 6A | 5304528814 | Nut, Leg Leveler |
|
Immediately | $ 8.68 | ||||
| 6B | 5304528815 | Foot, Leg Leveler |
|
Immediately | $ 10.13 | ||||
| NI | 241705801 | Spacer, Shelf/wtr Tube |
|
$ 7.09 | |||||
| NIA | 5304528818 | Screw, Shoulder, #8-18 X 5/8 |
|
$ 6.82 | |||||
| NIA | 5304525859 | Cover, Absorber, 320*, Ethylene |
|
$ 17.35 |
