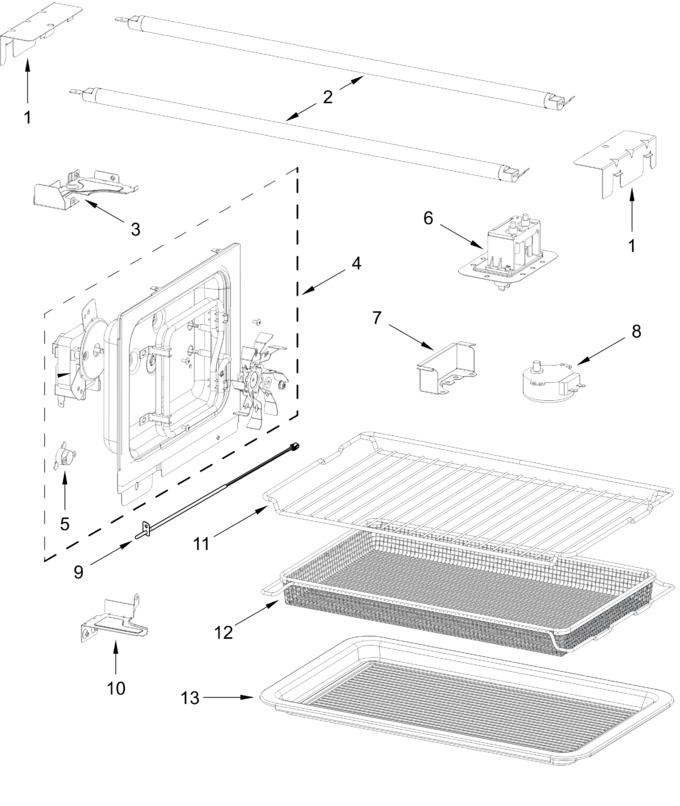

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11785052		Stopper, Grill Element   (Replaces: W11590330)		Appelez-nous	-
2	W11744593		Heater, Quartz Grill   (Replaces: W11683865)		Appelez-nous	-
3	W11785042		Air Guide, Convection (left)   (Replaces: W11712267)		Appelez-nous	-
4	W11735164		Module, Convection		Appelez-nous	-
5	W11268275		Thermostat				$ 74.98
6	W11707338		Connector, Heating Plate   (Replaces: W11590208)		Appelez-nous	-
7	W11785046		Bracket, Turntable Motor   (Replaces: W11652637)		Appelez-nous	-
8	W11658672		Motor, Stirring				$ 36.23
9	W11707563		Sensor, Temperature   (Replaces: W11605973)				$ 35.53
10	W11785045		Air Guide, Convection (right)   (Replaces: W11712268)		Appelez-nous	-
11	W11707190		Rack, Wire   (Replaces: W11600706)				$ 36.14
12	W11707191		Basket, Air Fry   (Replaces: W11600707)				$ 92.29
13	W11843696		Pan, Toast   (Replaces: W11600710)				$ 83.62
